Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

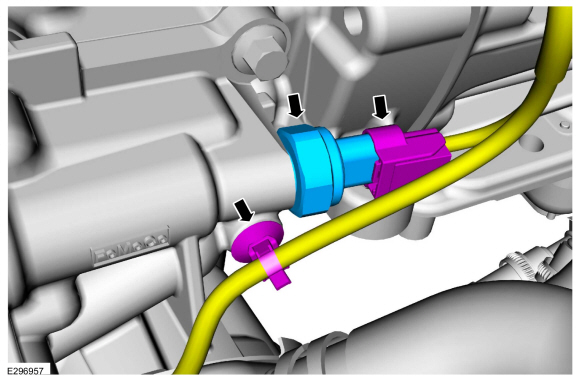

  1. NOTE: Do not re-use the engine oil pressure (EOP) sensor if it has been removed.

    Disconnect the electrical connector and harness retainer. Remove the bolt and the oil pressure control solenoid.
    Torque: 102 lb.in (11.5 Nm)

Installation

  1. To install, reverse the removal procedure.
