Ford Explorer: Engine Emission Control - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor

Ford Explorer 2020-2023 Service Manual / Powertrain / Engine / Engine Emission Control - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Differential Pressure Feedback Exhaust Gas Recirculation (EGR) Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

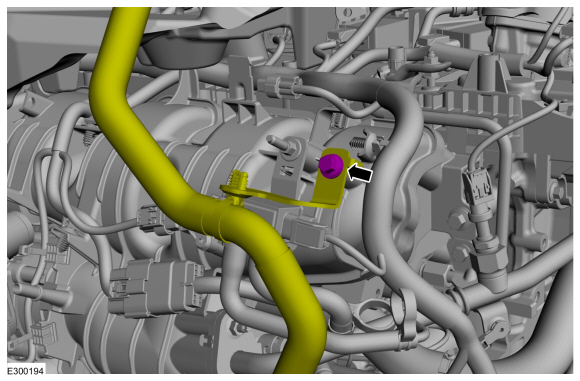

  1. Remove the bolt and position the coolant hose aside.
    Torque: 97 lb.in (11 Nm)

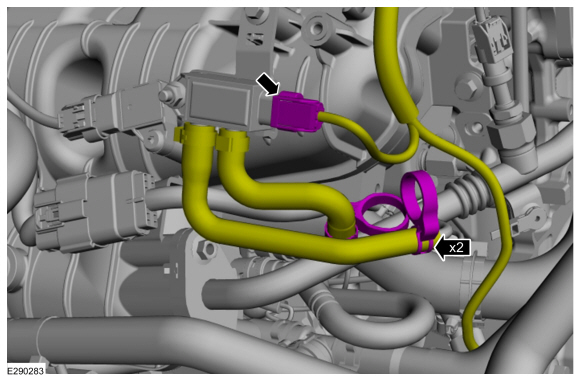

    • Disconnect the electrical connector.
    • Loosen the clamps and position aside the differential pressure sensor hoses.

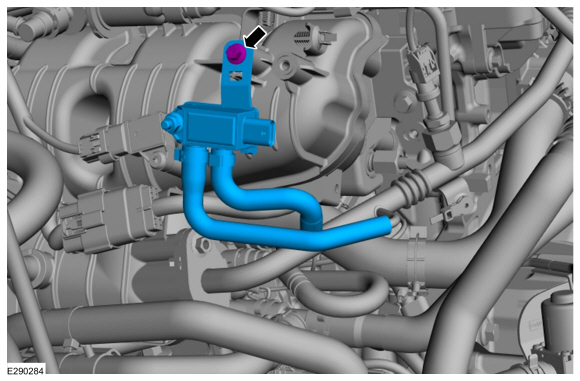

  1. Remove the fastener and differential pressure feedback EGR sensor.
    Torque: 97 lb.in (11 Nm)

Installation

  1. To install, reverse the removal procedure.
