Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the EGR cooler.
    Refer to: Exhaust Gas Recirculation (EGR) Valve (303-08A Engine Emission Control - 2.3L EcoBoost (201kW/273PS), Removal and Installation).
  1. Remove the EGR coolant outlet temperature sensor.
    Refer to: Exhaust Gas Recirculation (EGR) Coolant Outlet Temperature Sensor (303-08A Engine Emission Control - 2.3L EcoBoost (201kW/273PS), Removal and Installation).

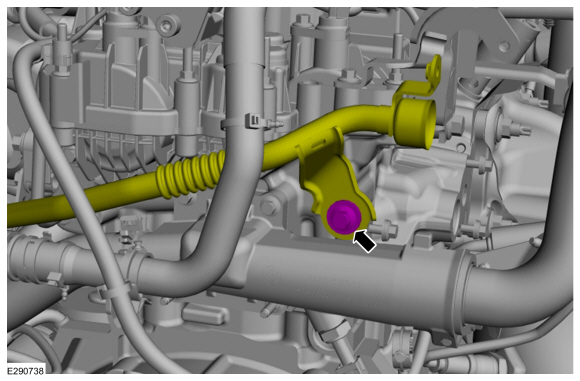

  1. Remove the bolt.
    Torque: 18 lb.ft (25 Nm)

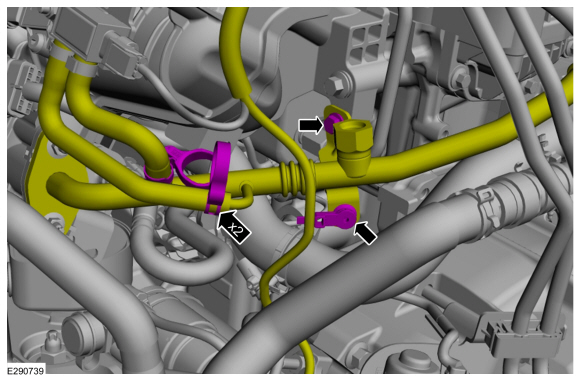

    • Loosen the clamps and position aside the differential pressure feedback sensor hoses.
    • Detach the retainers and position aside the wiring harness.
    • Remove the bolt.
      Torque: 97 lb.in (11 Nm)

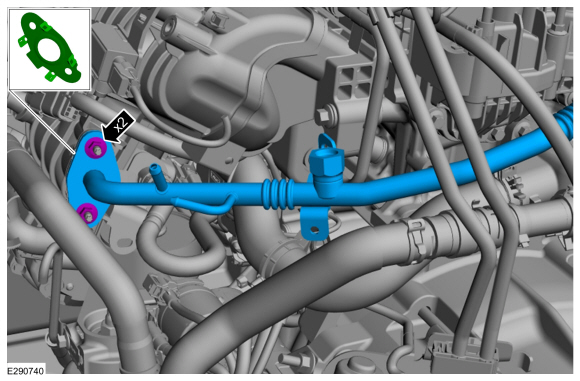

    • Remove the fasteners and EGR inlet tube.
      Torque: 97 lb.in (11 Nm)
    • Remove and discard the gasket.

Installation

  1. To install, reverse the removal procedure.
