Ford Explorer: Lighting / Interior Lamps

Ford Explorer 2020-2022 Owners Manual / Lighting / Interior Lamps

The lamps turn on under the following conditions:

  • You open any door.
  • You press a button on the remote control.
  • You press the all lamps on button on the overhead console.

Front Interior Lamp

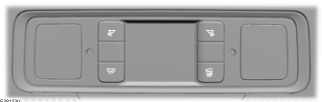

The front interior lamp switches are on the overhead console.

Note: The position of each button on the overhead console depends on your vehicle.

All Lamps On or Off

Press to switch all interior lamps on or off.

Individual Map Lamps

Press to switch the left-hand individual dome lamp on and off.

Press to switch the right-hand individual dome lamp on and off.

Interior Lamp Function

Press to switch the interior lamp function on and off.

When the interior lamp function is off and you open a door, the courtesy and door lamps stay off.

When the interior lamp function is on and you open a door, the courtesy and door lamps turn on.

Note: The indicator lamp lights amber when the door function is off.

Rear Interior Lamps

The rear interior lamps may be above the rear seat or above the rear windows.

Press to switch the lamps on or off.

Note: If you switch the rear lamps on through the overhead console, you cannot switch them off with the rear lamp switch.
