Ford Explorer: Front Drive Axle/Differential / General Procedures - Differential Fluid Level Check

Ford Explorer 2020-2021 Service Manual / Chassis / Driveline / Front Drive Axle/Differential / General Procedures - Differential Fluid Level Check

Materials

Name Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL
WSL-M2C192-A


Check

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

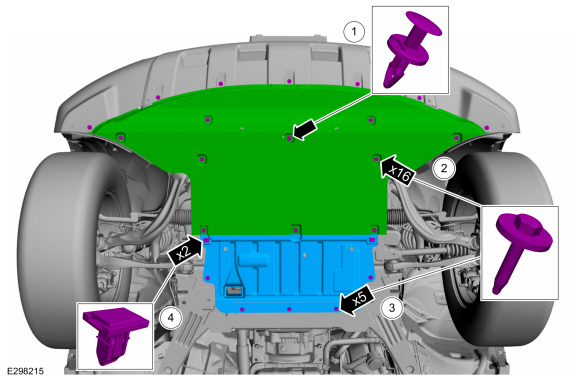

  1. Remove the engine undershield.
    1. Remove the pin-type retainer.
    1. Remove the bolts and the radiator air deflector.
    1. Remove the bolts.
    1. Remove the retainers and the engine undershield.
  1. Remove the front differential fill plug.
  1. Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be to the bottom of the filler hole.
    Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
  1. Ensure the front differential gear lubricant is filled to the bottom of the filler plug hole.
  1. Install the front differential fill plug.
    Torque: 30 lb.ft (40 Nm)

  1. Install the engine undershield
    1. Position the engine undershield and install the pin-type retainer.
    1. Install the bolts.
    1. Install the radiator air deflector and the bolts.
    1. Install the radiator air deflector retainers.

    General Procedures - Differential Draining and Filling

    Materials Name Specification Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantXY-75W140-QL WSL-M2C192-A  Draining With the vehicle in NEUTRAL, position it on a ho..

    Removal and Installation - Axle Assembly

    Materials Name Specification Slip Yoke Grease5L3Z-19A506-A -  Removal Drain the front differential fluid. Refer to: Differential Draining and Filling (205-03 Front Dr..
