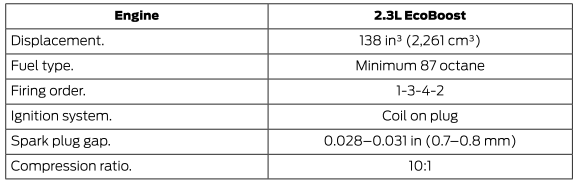

Kia Picanto: Capacities and Specifications / Engine Specifications - 2.3L EcoBoost™

Drivebelt Routing

2.3L EcoBoost Engine

A - Long drivebelt is on first pulley groove closest to engine.

B - Short drivebelt is on second pulley groove farthest from engine.

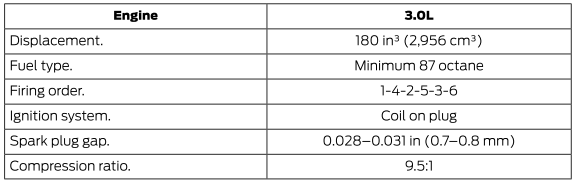

Engine Specifications - 3.0L

Capacities and Specifications

..

Engine Specifications - 3.0L, ST

..
