Diagnostic Trouble Code (DTC) Chart

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).


  Diagnostic Trouble Code Chart


Module   DTC Description Action
  BCM B11D9:16 Vehicle Battery: Circuit Voltage Below Threshold   GO to Pinpoint Test Y
  BCM B11D9:17 Vehicle Battery: Circuit Voltage Above Threshold   GO to Pinpoint Test AA
  BCM U0100:87 Lost Communication With ECM/PCM "A": Missing Message   GO to Pinpoint Test A
  BCM U0121:87 Lost Communication With Anti-Lock Brake System (ABS) Control Module: Missing Message   GO to Pinpoint Test B
  BCM U0131:87 Lost Communication With Power Steering Control Module:Missing Message   GO to Pinpoint Test C
  BCM U0151:87 Lost Communication With Restraints Control Module:Missing Message   GO to Pinpoint Test D
  BCM U0155:87 Lost Communication With Instrument Panel Cluster (IPC) Control Module: Missing Message   GO to Pinpoint Test E
  BCM U0166:87 Lost Communication With Auxiliary Heater Control Module:Missing Message   GO to Pinpoint Test F
  BCM U0184:87 Lost Communication With Radio:Missing Message   GO to Pinpoint Test G
  BCM U0198:87 Lost Communication With Telematic Control Module:Missing Message   GO to Pinpoint Test H
  BCM U0199:87 Lost Communication With "Door Control Module A":Missing Message   GO to Pinpoint Test I
  BCM U019B:87 Lost Communication With Battery Charger Control Module "A"::Missing Message   GO to Pinpoint Test J
  BCM U0200:87 Lost Communication With "Door Control Module B":Missing Message   GO to Pinpoint Test K
  BCM U0208:87 Lost Communication With "Seat Control Module A":Missing Message   GO to Pinpoint Test L
  BCM U0212:87 Lost Communication With Steering Column Control Module:Missing Message   GO to Pinpoint Test M
  BCM U0232:87 Lost Communication With Side Obstacle Detection Control Module "A":Missing Message   GO to Pinpoint Test N
  BCM U0233:87 Lost Communication With Side Obstacle Detection Control Module "B":Missing Message   GO to Pinpoint Test O
  BCM U023A:87 Lost Communication With Image Processing Control Module A:Missing Message   GO to Pinpoint Test P
  BCM U0252:87 Lost Communication With Lighting Control Module_Rear "B":Missing Message   GO to Pinpoint Test Q
  BCM U0253:87 Lost Communication With Accessory Protocol Interface Module:Missing Message   GO to Pinpoint Test R
  BCM U0256:87 Lost Communication With Front Controls Interface Module "A" :Missing Message   GO to Pinpoint Test S
  BCM U0293:87 Lost Communication With Hybrid/EV Powertrain Control Module "A" :Missing Message   GO to Pinpoint Test T
  BCM U1000:00 Solid State Driver Protection Active: Driver Disabled: No Sub Type Information   GO to Pinpoint Test U
  BCM U2005:85 Vehicle Speed:Signal Above Allowable Range   GO to Pinpoint Test V
  BCM U2100:00 Initial Configuration Not Complete: No Sub Type Information   GO to Pinpoint Test W
  BCM U2101:00 Control Module Configuration Inomplete: No Sub Type Information   GO to Pinpoint Test W
  BCM U2200:00 Control Module Configuration Memory Corrupt: No Sub Type Information   GO to Pinpoint Test W
  BCM U3000:49 Control Module:Internal Electronic Failure   GO to Pinpoint Test X
  BCM U3006:16 Control Module Input Power “A”: Circuit Voltage Below Threshold   GO to Pinpoint Test Y
  BCM U3006:17 Control Module Input Power “A”: Circuit Voltage Above Threshold   GO to Pinpoint Test AA
  BCM U3006:1C Control Module Input Power "A": Circuit Voltage Out of Range   GO to Pinpoint Test Z
  BCM U3007:16 Control Module Input Power "B": Circuit Voltage Below Threshold   GO to Pinpoint Test Y
  BCM U3007:17 Control Module Input Power "B": Circuit Voltage Above Threshold   GO to Pinpoint Test AA
  BCM U3013:16 Control Module Input Power "C": Circuit Voltage Below Threshold   GO to Pinpoint Test Y
  BCM U3013:17 Control Module Input Power "C": Circuit Voltage Above Threshold   GO to Pinpoint Test AA
  BCM U3014:16 Control Module Input Power "D": Circuit Voltage Below Threshold   GO to Pinpoint Test Y
  BCM U3014:17 Control Module Input Power "D": Circuit Voltage Above Threshold   GO to Pinpoint Test AA

Symptom Chart

Symptom Chart: Multifunction Electronic Modules

Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.
REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).

Condition Possible Sources Action
A module does not respond to the diagnostic scan tool
  • Fuse
  • Wiring, terminals or connectors
  • Module

REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

Pinpoint Tests


PINPOINT TEST A : U0100:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0100:87 Lost Communication With ECM/PCM "A": Missing Message A continuous memory DTC that sets in the BCM if powertrain data messages from the PCM over the HS-CAN are missing.

Possible Sources

  • Communication network concern
  • Charging system concern
  • PCM
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
A1 VERIFY THE DIAGNOSTIC SCAN TOOL COMMUNICATES WITH THE PCM (POWERTRAIN CONTROL MODULE)
  • Ignition ON.
  • Connect the diagnostic tool.
  • Check that a vehicle session can be established using the diagnostic scan tool.

Can a vehicle session be established?
Yes GO to A2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

A2 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0100:87 retrieved again?
Yes GO to A3
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

A3 RETRIEVE THE PCM (POWERTRAIN CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS) FROM THE SELF-TEST
  • Using a diagnostic scan tool, perform the PCM KOEO self-test.

Are any PCM voltage system related Diagnostic Trouble Codes (DTCs) present?
Yes With 2.3L EcoBoost engine,
REFER to: Electronic Engine Controls (303-14A Electronic Engine Controls - 2.3L EcoBoost (201kW/273PS), Diagnosis and Testing). With 3.0L EcoBoost engine,
REFER to: Electronic Engine Controls (303-14B Electronic Engine Controls - 3.0L EcoBoost, Diagnosis and Testing). With 3.3L Duratec engine,
REFER to: Electronic Engine Controls (303-14C Electronic Engine Controls - 3.3L Duratec-V6/3.3L Duratec-V6 – Hybrid (BP), Diagnosis and Testing).
No GO to A4

A4 RETRIEVE THE BCM (BODY CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS) FROM THE SELF-TEST
  • Using a diagnostic scan tool, perform the BCM self-test.

Are any BCM Diagnostic Trouble Codes (DTCs) recorded?
Yes REFER to the BCM DTC Chart.
No GO to A5

A5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0100:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0100:87 set in other modules?
Yes GO to A6
No GO to A7

A6 CHECK FOR CORRECT PCM (POWERTRAIN CONTROL MODULE) OPERATION
  • Disconnect and inspect all PCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the PCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern,
   Click here to access Guided Routine (PCM). Internet Explorer version 11 or greater is required to perform this Pinpoint Test.
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

A7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST B : U0121:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0121:87 Lost Communication With Anti-Lock Brake System (ABS) Control Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the ABS module through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • ABS module
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
B1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the ABS module pass the network test?
Yes GO to B2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

B2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to B3

B3 RETRIEVE THE ABS (ANTI-LOCK BRAKE SYSTEM) MODULE DIAGNOSTIC TROUBLE CODES (DTCS) FROM THE SELF-TEST
  • Using a diagnostic scan tool, perform the ABS module self-test.

Are any ABS voltage system related Diagnostic Trouble Codes (DTCs) present?
Yes
REFER to: Anti-Lock Brake System (ABS) and Stability Control (206-09 Anti-Lock Brake System (ABS) and Stability Control, Diagnosis and Testing).
No GO to B4

B4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0121:87 still present?
Yes GO to B5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

B5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0121:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0121:87 set in other modules?
Yes GO to B6
No GO to B7

B6 CHECK FOR CORRECT ABS (ANTI-LOCK BRAKE SYSTEM) MODULE OPERATION
  • Disconnect and inspect the ABS module connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the ABS module connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new ABS Module.
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

B7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST C : U0131:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0131:87 Lost Communication With Power Steering Control Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the PSCM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • PSCM
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
C1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the PSCM pass the network test?
Yes GO to C2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

C2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to C3

C3 RETRIEVE THE PSCM (POWER STEERING CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS) FROM THE SELF-TEST
  • Using a diagnostic scan tool, perform the PSCM self-test.

Are any PSCM Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Power Steering (211-02 Power Steering, Diagnosis and Testing).
No GO to C4

C4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0131:87 still present?
Yes GO to C5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

C5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0131:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0131:87 set in other modules?
Yes GO to C6
No GO to C7

C6 CHECK FOR CORRECT PSCM (POWER STEERING CONTROL MODULE) OPERATION
  • Disconnect and inspect the PSCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the PSCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new PSCM.
REFER to: Steering Gear (211-02 Power Steering, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

C7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST D : U0151:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0151:87 Lost Communication With Restraints Control Module: Missing Message A continuous memory DTC that sets in the BCM if SRS messages from the RCM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • RCM
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
D1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the RCM pass the network test?
Yes GO to D2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

D2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to D3

D3 RETRIEVE THE RCM (RESTRAINTS CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the RCM self-test.

Are any RCM voltage system related Diagnostic Trouble Codes (DTCs) present?
Yes
REFER to: Airbag Supplemental Restraint System (SRS) (501-20B Supplemental Restraint System, Diagnosis and Testing).
No GO to D4

D4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0151:87 still present?
Yes GO to D5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

D5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0151:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0151:87 set in other modules?
Yes GO to D6
No GO to D7

D6 CHECK FOR CORRECT RCM (RESTRAINTS CONTROL MODULE) OPERATION
  • Disconnect and inspect the RCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the RCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new RCM.
REFER to: Restraints Control Module (RCM) (501-20B Supplemental Restraint System, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

D7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST E : U0155:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0155:87 Lost Communication With Instrument Panel Cluster (IPC) Control Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the IPC through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • IPC
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
E1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the IPC pass the network test?
Yes GO to E2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

E2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to E3

E3 RETRIEVE THE IPC (INSTRUMENT PANEL CLUSTER) MODULE DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the IPC self-test.

Are any IPC voltage system related Diagnostic Trouble Codes (DTCs) present?
Yes
REFER to: Instrumentation, Message Center and Warning Chimes (413-01 Instrumentation, Message Center and Warning Chimes, Diagnosis and Testing).
No GO to E4

E4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0155:87 still present?
Yes GO to E5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

E5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0155:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0155:87 set in other modules?
Yes GO to E6
No GO to E7

E6 CHECK FOR CORRECT IPC (INSTRUMENT PANEL CLUSTER) OPERATION
  • Disconnect and inspect the IPC connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the IPC connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern,
   Click here to access Guided Routine (IPC). Internet Explorer version 11 or greater is required to perform this Pinpoint Test.
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

E7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST F : U0166:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0166:87 Lost Communication With Auxiliary Heater Control Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the RHVAC module through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • RHVAC module
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
F1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the RHVAC module pass the network test?
Yes GO to F2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

F2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to F3

F3 RETRIEVE THE RHVAC (REAR HEATING, VENTILATION AND AIR CONDITIONING) MODULE DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the RHVAC self-test.

Are any RHVAC voltage system related Diagnostic Trouble Codes (DTCs) present?
Yes
REFER to: Climate Control System (412-00 Climate Control System - General Information, Diagnosis and Testing).
No GO to F4

F4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0166:87 still present?
Yes GO to F5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

F5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0166:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0166:87 set in other modules?
Yes GO to F6
No GO to F7

F6 CHECK FOR CORRECT RHVAC (REAR HEATING, VENTILATION AND AIR CONDITIONING) MODULE OPERATION
  • Disconnect and inspect the RHVAC module connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the RHVAC module connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new RHVAC module.
REFER to: Rear Heating, Ventilation and Air Conditioning (RHVAC) Control Module (412-02 Rear Climate Control, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

F7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST G : U0184:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0184:87 Lost Communication With Radio: Missing Message A continuous memory DTC that sets in the BCM if messages from the ACM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • ACM
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
G1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the ACM pass the network test?
Yes GO to G2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

G2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to G3

G3 RETRIEVE THE ACM (AUDIO FRONT CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the ACM self-test.

Are any ACM Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Information and Entertainment System - Vehicles Without: SYNC 3 (415-00A Information and Entertainment System - General Information - Vehicles Without: SYNC 3, Diagnosis and Testing).
No GO to G4

G4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0184:87 still present?
Yes GO to G5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

G5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0184:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0184:87 set in other modules?
Yes GO to G6
No GO to G7

G6 CHECK FOR CORRECT ACM (AUDIO FRONT CONTROL MODULE) OPERATION
  • Disconnect and inspect the ACM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the ACM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern,
   Click here to access Guided Routine (APIM). Internet Explorer version 11 or greater is required to perform this Pinpoint Test.
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

G7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST H : U0198:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0198:87 Lost Communication With Telematic Control Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the TCU through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • TCU
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
H1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the TCU pass the network test?
Yes GO to H2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

H2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to H3

H3 RETRIEVE THE TCU (TELEMATIC CONTROL UNIT MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the TCU self-test.

Are any TCU Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Information and Entertainment System - Vehicles With: SYNC 3 (415-00B Information and Entertainment System - General Information - Vehicles With: SYNC 3, Diagnosis and Testing).
No GO to H4

H4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0198:87 still present?
Yes GO to H5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

H5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0198:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0198:87 set in other modules?
Yes GO to H6
No GO to H7

H6 CHECK FOR CORRECT TCU (TELEMATIC CONTROL UNIT MODULE) OPERATION
  • Disconnect and inspect the TCU connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the TCU connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new TCU.
REFER to: Telematics Control Unit (TCU) Module (415-00B Information and Entertainment System - General Information - Vehicles With: SYNC 3, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

H7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST I : U0199:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0199:87 Lost Communication With "Door Control Module A": Missing Message A continuous memory DTC that sets in the BCM if messages from the DDM over the MS-CAN through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • DDM
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
I1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the DDM pass the network test?
Yes GO to I2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

I2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to I3

I3 RETRIEVE THE DDM (DRIVER DOOR MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the DDM self-test.

Are any DDM Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Locks, Latches and Entry Systems (501-14 Handles, Locks, Latches and Entry Systems, Diagnosis and Testing).
No GO to I4

I4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0199:87 still present?
Yes GO to I5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

I5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0199:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0199:87 set in other modules?
Yes GO to I6
No GO to I7

I6 CHECK FOR CORRECT DDM (DRIVER DOOR MODULE) OPERATION
  • Disconnect and inspect the DDM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the DDM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new DDM.
REFER to: Driver Door Module (DDM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

I7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST J : U019B:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U019B:87 Lost Communication With Battery Charger Control Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the BECM over the HS-CAN1 are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • BECM
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
J1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the BECM pass the network test?
Yes GO to J2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

J2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to J3

J3 RETRIEVE THE BECM (BATTERY ENERGY CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the BECM self-test.

Are any BECM Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: High Voltage Battery, Mounting and Cables (414-03 High Voltage Battery, Mounting and Cables, Diagnosis and Testing).
No GO to J4

J4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U019B:87 still present?
Yes GO to J5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

J5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U019B:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U019B:87 set in other modules?
Yes GO to J6
No GO to J7

J6 CHECK FOR CORRECT BECM (BATTERY ENERGY CONTROL MODULE) OPERATION
  • Disconnect and inspect the BECM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BECM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BECM. REFER to section 414-03.
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

J7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST K : U0200:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0200:87 Lost Communication With "Door Control Module B": Missing Message A continuous memory DTC that sets in the BCM if messages from the PDM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • PDM
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
K1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the PDM pass the network test?
Yes GO to K2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

K2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to K3

K3 RETRIEVE THE PDM (PASSENGER DOOR MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the PDM self-test.

Are any PDM Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Locks, Latches and Entry Systems (501-14 Handles, Locks, Latches and Entry Systems, Diagnosis and Testing).
No GO to K4

K4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0200:87 still present?
Yes GO to K5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

K5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0200:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0200:87 set in other modules?
Yes GO to K6
No GO to K7

K6 CHECK FOR CORRECT PDM (PASSENGER DOOR MODULE) OPERATION
  • Disconnect and inspect the PDM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the PDM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new PDM.
REFER to: Passenger Door Module (PDM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

K7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST L : U0208:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0208:87 Lost Communication With "Seat Control Module A": Missing Message A continuous memory DTC that sets in the BCM if messages from the DSM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • DSM
  • BCM
NOTE: If new modules were installed prior to the DTC being set, the module configuration may be incorrectly set during the PMI or the PMI may not have been carried out.
L1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the DSM pass the network test?
Yes GO to L2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

L2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to L3

L3 RETRIEVE THE DSM (DRIVER FRONT SEAT MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the DSM self-test.

Are any DSM Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Front Seats (501-10A Front Seats, Diagnosis and Testing).
No GO to L4

L4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0208:87 still present?
Yes GO to L5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

L5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0208:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0208:87 set in other modules?
Yes GO to L6
No GO to L7

L6 CHECK FOR CORRECT DSM (DRIVER FRONT SEAT MODULE) OPERATION
  • Disconnect and inspect the DSM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the DSM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new DSM.
REFER to: Driver Front Seat Module (DSM) (501-10A Front Seats, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

L7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST M : U0212:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0212:87 Lost Communication With Steering Column Control Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the SCCM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • SCCM
  • BCM
M1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the SCCM pass the network test?
Yes GO to M2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

M2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to M3

M3 RETRIEVE THE SCCM (STEERING COLUMN CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the SCCM self-test.

Are any SCCM Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Steering Wheel and Column Electrical Components (211-05 Steering Wheel and Column Electrical Components, Diagnosis and Testing).
No GO to M4

M4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0212:87 still present?
Yes GO to M5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

M5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0212:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0212:87 set in other modules?
Yes GO to M6
No GO to M7

M6 CHECK FOR CORRECT SCCM (STEERING COLUMN CONTROL MODULE) OPERATION
  • Disconnect and inspect the SCCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the SCCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new SCCM.
REFER to: Steering Column Control Module (SCCM) (211-05 Steering Wheel and Column Electrical Components, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

M7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST N : U0232:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0232:87 Lost Communication With Side Obstacle Detection Control Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the SODL through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • SODL
  • BCM
N1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the SODL pass the network test?
Yes GO to N2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

N2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to N3

N3 RETRIEVE THE SODL (SIDE OBSTACLE DETECTION CONTROL MODULE LH) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the SODL self-test.

Are any SODL Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Blind Spot Information System (419-04 Side and Rear Vision, Diagnosis and Testing).
No GO to N4

N4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0232:87 still present?
Yes GO to N5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

N5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0232:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0232:87 set in other modules?
Yes GO to N6
No GO to N7

N6 CHECK FOR CORRECT SODL (SIDE OBSTACLE DETECTION CONTROL MODULE LH) OPERATION
  • Disconnect and inspect the SODL connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the SODL connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new SODL.
REFER to: Side Obstacle Detection Control Module (419-04 Side and Rear Vision, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

N7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST O : U0233:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0233:87 Lost Communication With Side Obstacle Detection Control Module "B": Missing Message A continuous memory DTC that sets in the BCM if messages from the SODR through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • SODR
  • BCM
O1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the SODR pass the network test?
Yes GO to O2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

O2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to O3

O3 RETRIEVE THE SODR (SIDE OBSTACLE DETECTION CONTROL MODULE RH) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the SODL self-test.

Are any SODR Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Blind Spot Information System (419-04 Side and Rear Vision, Diagnosis and Testing).
No GO to O4

O4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0233:87 still present?
Yes GO to O5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

O5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0233:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0233:87 set in other modules?
Yes GO to O6
No GO to O7

O6 CHECK FOR CORRECT SODR (SIDE OBSTACLE DETECTION CONTROL MODULE RH) OPERATION
  • Disconnect and inspect the SODR connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the SODR connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new SODR.
REFER to: Side Obstacle Detection Control Module (419-04 Side and Rear Vision, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

O7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST P : U023A:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U023A:87 Lost Communication With Image Processing Module A: Missing Message A continuous memory DTC that sets in the BCM if messages received from the IPMA are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • IPMA
  • GWM concern
  • BCM
P1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the IPMA pass the network test?
Yes GO to P2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

P2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to P3

P3 RETRIEVE THE IPMA (IMAGE PROCESSING MODULE A) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the IPMA self-test.

Are any IPMA Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Lane Keeping System (419-07 Lane Keeping System, Diagnosis and Testing).
No GO to P4

P4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U023A:87 still present?
Yes GO to P5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

P5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U023A:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U023A:87 set in other modules?
Yes GO to P6
No GO to P7

P6 CHECK FOR CORRECT IPMA (IMAGE PROCESSING MODULE A) OPERATION
  • Ignition OFF.
  • Disconnect and inspect all IPMA connections.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all IPMA connections. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new IPMA.
REFER to: Image Processing Module A (IPMA) (419-07 Lane Keeping System, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

P7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Ignition OFF.
  • Disconnect and inspect all BCM connections.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all BCM connections. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST Q : U0252:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0252:87 Lost Communication With Lighting Control Module- Rear "B": Missing Message A continuous memory DTC that sets in the BCM if messages received from the TRM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • TRM
  • GWM concern
  • BCM
Q1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the TRM pass the network test?
Yes GO to Q2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

Q2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to Q3

Q3 RETRIEVE THE TRM (TRAILER MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the TRM self-test.

Are any TRM Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Trailer Lamps (417-01 Exterior Lighting, Diagnosis and Testing).
No GO to Q4

Q4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0252:87 still present?
Yes GO to Q5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

Q5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0252:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0252:87 set in other modules?
Yes GO to Q6
No GO to Q7

Q6 CHECK FOR CORRECT TRM (TRAILER MODULE) OPERATION
  • Ignition OFF.
  • Disconnect and inspect all TRM connections.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all TRM connections. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new TRM.
REFER to: Trailer Module (TRM) (417-01 Exterior Lighting, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

Q7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Ignition OFF.
  • Disconnect and inspect all BCM connections.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all BCM connections. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST R : U0253:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0253:87 Lost Communication With Accessory Protocol Interface Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the APIM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • APIM
  • BCM
R1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the APIM pass the network test?
Yes GO to R2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

R2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to R3

R3 RETRIEVE THE APIM (SYNC MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the APIM self-test.

Are any APIM Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Information and Entertainment System - Vehicles Without: SYNC 3 (415-00A Information and Entertainment System - General Information - Vehicles Without: SYNC 3, Diagnosis and Testing).
No GO to R3

R4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0253:87 still present?
Yes GO to R5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

R5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0253:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0253:87 set in other modules?
Yes GO to R6
No GO to R7

R6 CHECK FOR CORRECT APIM (SYNC MODULE) OPERATION
  • Disconnect and inspect the APIM connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the APIM connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern,
   Click here to access Guided Routine (APIM). Internet Explorer version 11 or greater is required to perform this Pinpoint Test.
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

R7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST S : U0256:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0256:87 Lost Communication With Front Controls Interface Module "A": Missing Message A continuous memory DTC that sets in the BCM if messages from the FCIM through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • FCIM
  • BCM
S1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the FCIM pass the network test?
Yes GO to S2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

S2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to S3

S3 RETRIEVE THE FCIM (FRONT CONTROLS INTERFACE MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the FCIM self-test.

Are any FCIM Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Information and Entertainment System - Vehicles Without: SYNC 3 (415-00A Information and Entertainment System - General Information - Vehicles Without: SYNC 3, Diagnosis and Testing).
No GO to S4

S4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0256:87 still present?
Yes GO to S5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

S5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0256:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0256:87 set in other modules?
Yes GO to S6
No GO to S7

S6 CHECK FOR CORRECT FCIM (FRONT CONTROLS INTERFACE MODULE) OPERATION
  • Disconnect and inspect the FCIM connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the FCIM connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern,
   Click here to access Guided Routine (FCIM). Internet Explorer version 11 or greater is required to perform this Pinpoint Test.
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

S7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST T : U0293:87

Refer to Wiring Diagrams Cell 14 for schematic and connector information.

Normal Operation and Fault Conditions

REFER to: Communications Network - Overview (418-00 Module Communications Network, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U0293:87 Lost Communication with Hybrid/EV Powertrain Control Module: Missing Message A continuous memory DTC that sets in the BCM if messages from the SOBDMC through the GWM are missing.

Possible Sources

  • Communication network concern
  • Battery voltage concern
  • GWM concern
  • SOBDMC
  • BCM
T1 CHECK THE COMMUNICATION NETWORK
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform a network test.

Does the SOBDMC pass the network test?
Yes GO to T2
No
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing).

T2 CHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:16, B11D9:17, U3006:16, U3006:17, U3007:16, U3007:17, U3013:16, U3013:17, U3014:16 or U3014:17 recorded?
Yes For DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16, GO to Pinpoint Test Y
For DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17, GO to Pinpoint Test AA
No GO to T3

T3 RETRIEVE THE SOBDMC (SECONDARY ON-BOARD DIAGNOSTIC CONTROL MODULE C) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Using a diagnostic scan tool, perform the SOBDMC self-test.

Are any SOBDMC Diagnostic Trouble Codes (DTCs) recorded?
Yes
REFER to: Electronic Engine Controls (303-14A Electronic Engine Controls - 2.3L EcoBoost (201kW/273PS), Diagnosis and Testing).
No GO to T4

T4 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0293:87 still present?
Yes GO to T5
No The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.

T5 CHECK FOR DTC (DIAGNOSTIC TROUBLE CODE) U0293:87 SET IN OTHER MODULES
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Ignition OFF.
  • Ignition ON.
  • Wait 10 seconds.
  • Using a diagnostic scan tool, retrieve all Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC U0293:87 set in other modules?
Yes GO to T6
No GO to T7

T6 CHECK FOR CORRECT SOBDMC (SECONDARY ON-BOARD DIAGNOSTIC CONTROL MODULE C) OPERATION
  • Disconnect and inspect the SOBDMC connector.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the SOBDMC connector. Make sure it seats and latches correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new SOBDMC.
REFER to: Powertrain Control Module (PCM) (303-14B Electronic Engine Controls - 3.0L EcoBoost, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

T7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST U : U1000:00

Normal Operation and Fault Conditions

The BCM uses solid state drivers (Field Effect Transistors (FET)) to control the output of several vehicle systems. When an overload occurs on any of these drivers, the BCM disables the output and tracks the number of repetitive faults on each of these circuits. The module compares this number of overloads to three progressive thresholds established for each circuit. At each threshold, DTC U1000:00 sets along with the DTC associated with the affected circuit. For additional information, REFER to: Module Controlled Functions - Overview (419-10 Multifunction Electronic Modules, Description and Operation).

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U1000:00 Solid State Driver Protection Active -Driver Disabled: No Sub Type Information A continuous memory DTC that sets when the BCM has disabled a circuit due to a repetitive circuit overload and a progressive threshold is met.

Possible Sources

  • BCM output circuit short
  • BCM
U1 REVIEW THE DIAGNOSTIC TROUBLE CODES (DTCS)
  • Ignition ON.
  • Connect the diagnostic tool.
  • Review the Diagnostic Trouble Codes (DTCs) from the BCM self-test.

Are any Diagnostic Trouble Codes (DTCs) present besides U1000:00?
Yes CORRECT all other Diagnostic Trouble Codes (DTCs) first. REFER to the Master DTC Chart.
No GO to U2

U2 REPEAT THE BCM (BODY CONTROL MODULE) SELF-TEST
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Repeat the BCM self-test.

Is DTC U1000:00 still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The circuit short has been repaired.

PINPOINT TEST V : U2005:85

Normal Operation and Fault Conditions

The BCM monitores various inputs from all modules that communicate in the CAN. When a vehicle speed signal is detected while the vehicle is stationary, the BCM triggers DTC U2005:85.

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U2005:85 Vehicle Speed: Signal Above Allowable Range This DTC sets when the BCM detects a vehicle speed while the vehicle is stationary.

Possible Sources

  • PCM
  • ABS module
  • BCM
V1 CONFIRM THE DTC (DIAGNOSTIC TROUBLE CODE) RESETS
  • Make sure the vehicle is stationary and the BCM entry level requirements are met prior to performing the self-test.
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using the diagnostic scan tool, clear the DTC.
  • Wait 10 seconds.
  • Using the diagnostic scan tool, perform the BCM self-test.

Is DTC U2005:85 still present?
Yes Diagnose any observable symptoms that are present. GO to V2
No The system is operating correctly at this time. The DTC may have been falsely set by the BCM causing the signal to momentarily stop and set the DTC.

V2 REPEAT THE BCM (BODY CONTROL MODULE) SELF-TEST
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Repeat the BCM self-test.

Is DTC U2005:85 still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, DIAGNOSE any PCM or ABS Diagnostic Trouble Codes (DTCs) causing a false vehicle speed signal.
REFER to: Anti-Lock Brake System (ABS) and Stability Control (206-09 Anti-Lock Brake System (ABS) and Stability Control, Diagnosis and Testing).
No The system is operating correctly at this time. The circuit short has been repaired.

PINPOINT TEST W : U2100:00, U2101:00 OR U2200:00

Normal Operation and Fault Conditions

The BCM as well as all control modules that are programmable must have the correct As-Built data installed.

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U2100:00 Initial Configuration Not Complete: No Sub Type Information This DTC sets when the BCM As-Built data installation was not installed completely or incorrectly.
BCM U2101:00 Control Module Configuration Incompatible: No Sub Type Information This DTC sets when the BCM As-Built data installation was not installed completely or incorrectly.
BCM U2200:00 Control Module Configuration Memory Corrupt: No Sub Type Information This DTC sets when the BCM As-Built data installation was not installed completely or incorrectly.

Possible Sources

  • BCM
NOTE: Contact the Technical Assistance Center if module programming concerns continue to be encountered in the process of completing module programming.
W1 CONFIRM THE DTC (DIAGNOSTIC TROUBLE CODE) RESETS
  • Check vehicle service history for recent service actions related to the BCM.
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using the diagnostic scan tool, clear the DTC.
  • Wait 10 seconds.
  • Using the diagnostic scan tool, perform the BCM self-test.

Is DTC U2100:00, U2101:00 and/or U2200:00 still present?
Yes GO to W2
No The system is operating correctly at this time. The DTC may have been falsely set by the BCM causing the signal to momentarily stop and set the DTC.

W2 INSTALL BCM (BODY CONTROL MODULE) PMI (PROGRAMMABLE MODULE INSTALLATION)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Install BCM As-Built data from PTS following scan tool instructions.

Is DTC U2100:00, U2101:00 and/or U2200:00 still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern and module programming concerns continue to be encountered, CONTACT the Technical Assistance Center for further instructions.
No The system is operating correctly at this time.

PINPOINT TEST X : U3000:49

Normal Operation and Fault Conditions

The BCM receives voltage at all times from the BCMC.

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U3000:49 Control Module: Internal Electronic Failure This DTC sets when the BCM detects an internal failure.

Possible Sources

  • BCM
X1 CONFIRM THE DTC (DIAGNOSTIC TROUBLE CODE) RESETS
  • Check vehicle service history for recent service actions related to the BCM.
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using the diagnostic scan tool, clear the DTC.
  • Wait 10 seconds.
  • Using the diagnostic scan tool, perform the BCM self-test.

Is DTC U3000:49 still present?
Yes GO to X2
No The system is operating correctly at this time. The DTC may have been falsely set by the BCM causing the signal to momentarily stop and set the DTC.

X2 INSTALL BCM (BODY CONTROL MODULE) PMI (PROGRAMMABLE MODULE INSTALLATION)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Following scan tool instructions, INSTALL BCM As-Built data from PTS.

Is DTC U2100:00, U2101:00 and/or U2200:00still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time.

PINPOINT TEST Y : BCM (BODY CONTROL MODULE) INPUT POWER VOLTAGE BELOW THRESHOLD

Refer to Wiring Diagrams Cell 13 for schematic and connector information.

Normal Operation and Fault Conditions

Vehicle Ground Information


  • Refer to Wiring Diagrams Cell 10 for schematic and connector information.

Vehicle Power Information


  • Refer to Wiring Diagrams Cell 13 for schematic and connector information.

The BCM receives voltage at all times from the BCMC.

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM B11D9:16 Vehicle Battery: Circuit Voltage Below Threshold A continuous and on-demand DTC that sets in the BCM if the BCM detects lower than expected battery voltage on the voltage supply input circuit.
BCM U3006:16 Control Module Input Power "A" Circuit/Open: Circuit Voltage Below Threshold A continuous and on-demand DTC that sets in the BCM if the BCM detects lower than expected battery voltage on the voltage supply input circuit.
BCM U3007:16 Control Module Input Power "B" Circuit/Open: Circuit Voltage Below Threshold A continuous DTC that sets in the BCM if the BCM detects lower than expected battery voltage on the voltage supply input circuit.
BCM U3013:16 Control Module Input Power "C" Circuit/Open: Circuit Voltage Below Threshold A continuous DTC that sets in the BCM if the BCM detects lower than expected battery voltage on the voltage supply input circuit.
BCM U3014:16 Control Module Input Power "D" Circuit/Open: Circuit Voltage Below Threshold A continuous DTC that sets in the BCM if the BCM detects lower than expected battery voltage on the voltage supply input circuit.

Possible Sources

  • Wiring, terminals or connectors
  • Fuse
  • Charging system concern
  • Battery concern
  • BCMC
  • BCM

Visual Inspection and Pre-checks

  • BCMC F1 (40A)
  • BCMC F3 (40A)
  • BCMC F43 (60A)
  • BCMC F111 (30A)
Y1 RECHECK THE BCM (BODY CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, perform the BCM self-test.

Is DTC B11D9:16, U3006:16, U3007:16, U3013:16 or U3014:16 still present?
Yes GO to Y2
No The system is operating correctly at this time. The DTC may have been set due to a previous low battery voltage condition. CLEAR the DTC.

Y2 CHECK FOR CHARGING SYSTEM DIAGNOSTIC TROUBLE CODES (DTCS) SET IN OTHER MODULES
  • Using a diagnostic scan tool, retrieve all Diagnostic Trouble Codes (DTCs).

Are any charging system Diagnostic Trouble Codes (DTCs) recorded?
Yes DIAGNOSE the charging system concern.
REFER to: Charging System (414-00 Charging System - General Information, Diagnosis and Testing).
No GO to Y3

Y3 CHECK THE BATTERY CONDITION AND STATE OF CHARGE
  • Check the battery condition and verify the battery is fully charged.
    REFER to: Battery (414-01 Battery, Mounting and Cables, Diagnosis and Testing).

Is the battery OK and fully charged?
Yes GO to Y4
No If the battery is discharged, DIAGNOSE the cause of the low battery condition.
REFER to: Battery (414-01 Battery, Mounting and Cables, Diagnosis and Testing). If the battery condition fails, INSTALL a new battery.
REFER to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

Y4 COMPARE THE BCM (BODY CONTROL MODULE) BATTERY VOLTAGE PID (PARAMETER IDENTIFICATION) WITH ACTUAL BATTERY VOLTAGE

NOTE: Inspect fuses before proceeding.

  • Start the engine.
  • Turn on accessories (climate control blower on high speed and exterior lights).

  • Access the  BCM  and monitor the  VPWR_RAW (V)  PID

    Compare BCM PID with actual battery voltage.
  • With the engine running at idle, measure and record battery voltage:

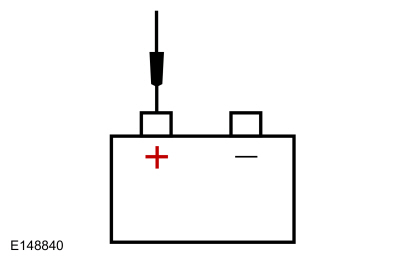

    Positive Lead Measurement / Action Negative Lead
  • Using a diagnostic scan tool,

    Access the  BCM  and monitor the  VPWR_RAW (V)  PID


Is the recorded battery voltage within 0.2 volt of the

Access the  BCM  and monitor the  VPWR_RAW (V)  PID

?
Yes TURN the engine off, GO to Y7
No GO to Y5

Y5 CHECK THE BCM (BODY CONTROL MODULE) VOLTAGE SUPPLY CIRCUITS
  • Ignition OFF.
  • Disconnect BCM C2280G .
  • Disconnect BCM C2280H .
  • Ignition ON.
  • Measure:
    Positive Lead Measurement / Action Negative Lead
      C2280G-17   Ground
      C2280G-21   Ground
      C2280G-22   Ground
    Positive Lead Measurement / Action Negative Lead
      C2280H-1   Ground

Are the voltages within 0.2 volt of the recorded battery voltage?
Yes GO to Y6
No REPAIR the circuit in question for high resistance.

Y6 CHECK THE BCM (BODY CONTROL MODULE) PROCESSOR GROUNDS
  • Ignition OFF.
  • Disconnect BCM C2280C .
  • Measure:
    Positive Lead Measurement / Action Negative Lead
      C2280C-6   Ground
      C2280C-7   Ground

Are the resistances less than 3 ohms?
Yes GO to Y7
No REPAIR the circuit in question for high resistance.

Y7 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals – clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect all BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST Z : U3006:1C

Refer to Wiring Diagrams Cell 13 for schematic and connector information.

Normal Operation and Fault Conditions

Vehicle Ground Information


  • Refer to Wiring Diagrams Cell 10 for schematic and connector information.

Vehicle Power Information


  • Refer to Wiring Diagrams Cell 13 for schematic and connector information.

The BCM receives voltage at all times from the BCMC.

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM U3006:1C Control Module Input Power "A" Circuit/Open: Circuit Voltage Out Of Range A continuous memory DTC that sets in the BCM if the BCM detects out of range voltage on the voltage supply input circuits.

Possible Sources

  • Wiring, terminals or connectors
  • Charging system concern
  • Battery concern
  • BCMC
  • BCM

Visual Inspection and Pre-checks

  • BCMC F1 (40A)
  • BCMC F3 (40A)
  • BCMC F43 (60A)
  • BCMC F111 (30A)
Z1 CHECK THE BCM (BODY CONTROL MODULE) FOR CHARGING SYSTEM DIAGNOSTIC TROUBLE CODES (DTCS)
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, perform the BCM self-test.

DIAGNOSE the charging system concern
Yes
REFER to: Charging System (414-00 Charging System - General Information, Diagnosis and Testing).
No GO to Z2

Z2 CHECK FOR CHARGING SYSTEM DIAGNOSTIC TROUBLE CODES (DTCS) SET IN OTHER MODULES
  • Ignition ON.
  • Using a diagnostic scan tool, retrieve all Diagnostic Trouble Codes (DTCs).

Are any charging system Diagnostic Trouble Codes (DTCs) recorded?
Yes DIAGNOSE the charging system concern.
REFER to: Charging System (414-00 Charging System - General Information, Diagnosis and Testing).
No GO to Z3

Z3 CHECK THE BATTERY VOLTAGE
  • Turn off all interior/exterior lights and accessories.
  • Start and run the engine at approximately 2,000 rpm for three minutes while monitoring the battery voltage.
    Positive Lead Measurement / Action Negative Lead

Does the battery voltage rise to 16 volts or higher?
Yes DIAGNOSE the over-charging system concern.
REFER to: Charging System (414-00 Charging System - General Information, Diagnosis and Testing).
No GO to Z4

Z4 RECHECK THE BCM (BODY CONTROL MODULE) DIAGNOSTIC TROUBLE CODES (DTCS)
  • Ignition OFF.
  • Ignition ON.
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Diagnostic Trouble Codes (DTCs).

Is DTC U3006:1C present?
Yes GO to Z5
No The system is operating correctly at this time. The DTC may have been caused by module connections or may have been set previously during battery charging or while jump starting the vehicle. ADDRESS the root cause of any connector or pin issues.

Z5 CHECK THE BATTERY CONDITION AND STATE OF CHARGE
  • Check the battery condition and verify the battery is fully charged.
    REFER to: Battery (414-01 Battery, Mounting and Cables, Diagnosis and Testing).

Is the battery OK and fully charged?
Yes GO to Z6
No If the battery is discharged, DIAGNOSE the cause of the low battery condition.
REFER to: Battery (414-01 Battery, Mounting and Cables, Diagnosis and Testing). If the battery condition fails, INSTALL a new battery.
REFER to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

Z6 COMPARE THE BCM (BODY CONTROL MODULE) BATTERY VOLTAGE PID (PARAMETER IDENTIFICATION) WITH ACTUAL BATTERY VOLTAGE

NOTE: Inspect fuses before proceeding.

  • Start the engine.
  • Turn on accessories (climate control blower on high speed, exterior lights).

  • Access the  BCM  and monitor the  VPWR_RAW (V)  PID

    Compare BCM PID with actual battery voltage.
  • With the engine running at idle, measure and record battery voltage:
    Click to display connectors
    Positive Lead Measurement / Action Negative Lead
  • Using a diagnostic scan tool,

    Access the  BCM  and monitor the  VPWR_RAW (V)  PID


Is the recorded battery voltage within 0.2 volt of the

Access the  BCM  and monitor the  VPWR_RAW (V)  PID

?
Yes TURN the engine off, GO to Z9
No GO to Z7

Z7 CHECK THE BCM (BODY CONTROL MODULE) VOLTAGE SUPPLY CIRCUIT
  • Ignition OFF.
  • Disconnect BCM C2280G .
  • Disconnect BCM C2280H .
  • Ignition ON.
  • Measure:
    Positive Lead Measurement / Action Negative Lead
      C2280G-17   Ground
      C2280G-21   Ground
      C2280G-22   Ground
    Positive Lead Measurement / Action Negative Lead
      C2280H-1   Ground

Is the voltage within 0.2 volt of the recorded battery voltage?
Yes GO to Z8
No REPAIR the circuit for high resistance.

Z8 CHECK THE BCM (BODY CONTROL MODULE) PROCESSOR GROUNDS
  • Ignition OFF.
  • Disconnect BCM C2280C .
  • Measure:
    Positive Lead Measurement / Action Negative Lead
      C2280C-6   Ground
      C2280C-7   Ground

Are the resistances less than 3 ohms?
Yes GO to Z9
No REPAIR the circuit in question for high resistance.

Z9 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals - clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.

PINPOINT TEST AA : BCM (BODY CONTROL MODULE) INPUT POWER VOLTAGE ABOVE THRESHOLD

Refer to Wiring Diagrams Cell 13 for schematic and connector information.

Normal Operation and Fault Conditions

Vehicle Ground Information


  • Refer to Wiring Diagrams Cell 10 for schematic and connector information.

Vehicle Power Information


  • Refer to Wiring Diagrams Cell 13 for schematic and connector information.

DTC Fault Trigger Conditions

DTC Description Fault Trigger Condition
BCM B11D9:17 Vehicle Battery: Circuit Voltage Above Threshold A continuous and on-demand DTC that sets in the BCM if the BCM detects higher than expected battery voltage on the voltage supply input circuit.
BCM U3006:17 Control Module Input Power "A" Circuit/Open: Circuit Voltage Above Threshold A continuous and on-demand DTC that sets in the BCM if the BCM detects higher than expected battery voltage on the voltage supply input circuit.
BCM U3007:17 Control Module Input Power "B" Circuit/Open: Circuit Voltage Above Threshold A continuous DTC that sets in the BCM if the BCM detects higher than expected battery voltage on the voltage supply input circuit.
BCM U3013:17 Control Module Input Power "C" Circuit/Open: Circuit Voltage Above Threshold A continuous DTC that sets in the BCM if the BCM detects higher than expected battery voltage on the voltage supply input circuit.
BCM U3014:17 Control Module Input Power "D" Circuit/Open: Circuit Voltage Above Threshold A continuous DTC that sets in the BCM if the BCM detects higher than expected battery voltage on the voltage supply input circuit.

Possible Sources

  • Charging system concern
  • BCM
NOTE: B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17 may be stored in the module memory due to previous battery charging or vehicle jump starting events.
AA1 CHECK FOR OVERCHARGING DIAGNOSTIC TROUBLE CODES (DTCS) SET IN OTHER MODULES
  • Ignition ON.
  • Connect the diagnostic tool.
  • Using a diagnostic scan tool, retrieve all Diagnostic Trouble Codes (DTCs).

Are any charging system Diagnostic Trouble Codes (DTCs) recorded?
Yes DIAGNOSE the charging system concern.
REFER to: Charging System (414-00 Charging System - General Information, Diagnosis and Testing).
No GO to AA2

AA2 CHECK THE BATTERY VOLTAGE
  • Turn off all interior/exterior lights and accessories.
  • Start and run the engine at approximately 2,000 rpm for three minutes while monitoring the battery voltage.
    Positive Lead Measurement / Action Negative Lead

Does the battery voltage rise to 16 volts or higher?
Yes DIAGNOSE the over-charging system concern.
REFER to: Charging System (414-00 Charging System - General Information, Diagnosis and Testing).
No GO to AA3

AA3 RECHECK THE BCM (BODY CONTROL MODULE) CONTINUOUS MEMORY DIAGNOSTIC TROUBLE CODES (CMDTCS)
  • Using a diagnostic scan tool, clear the Diagnostic Trouble Codes (DTCs).
  • Wait 10 seconds.
  • Using a diagnostic scan tool, check the BCM Continuous Memory Diagnostic Trouble Codes (CMDTCs).

Is DTC B11D9:17, U3006:17, U3007:17, U3013:17 or U3014:17 present?
Yes GO to AA4
No The system is operating correctly at this time. The DTC may have been caused by module connections or may have been set previously during battery charging or while jump starting the vehicle. ADDRESS the root cause of any connector or pin issues.

AA4 CHECK FOR CORRECT BCM (BODY CONTROL MODULE) OPERATION
  • Disconnect and inspect all BCM connectors.
  • Repair:
    • corrosion (install new connector or terminals – clean module pins)
    • damaged or bent pins - install new terminals/pins
    • pushed-out pins - install new pins as necessary
  • Reconnect the BCM connectors. Make sure they seat and latch correctly.
  • Operate the system and determine if the concern is still present.

Is the concern still present?
Yes CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA. If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions. If no service articles address this concern, INSTALL a new BCM.
REFER to: Body Control Module (BCM) (419-10 Multifunction Electronic Modules, Removal and Installation).
No The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.


    Description and Operation - Module Controlled Functions - System Operation and Component Description

    System Operation BCM The BCM controls various systems by monitoring inputs from switches, sensors and network messages from other modules and components on the HS-CAN1 and LIN...

    Diagnosis and Testing - Body Control Module C (BCMC)

    Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Informati..

    Other information:

    Ford Explorer 2020-2024 Service Manual: Removal and Installation - Front Impact Severity Sensor


    Removal   WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash...

    Ford Explorer 2020-2024 Service Manual: Removal and Installation - Passenger Door Module (PDM)


    Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation...

    Categories

    Intelligent Access Key

    Note: You may not be able to shift out of park (P) unless the intelligent access key is inside your vehicle.

    read more


    Copyright © 2024 www.foexplorer.com
