Ford Explorer: High Voltage Battery, Mounting and Cables / Description and Operation - High Voltage Battery, Mounting and Cables - Component Location

Ford Explorer 2020-2025 Service Manual / Electrical / Battery and Charging System / High Voltage Battery, Mounting and Cables / Description and Operation - High Voltage Battery, Mounting and Cables - Component Location


Item Description
1 High voltage battery

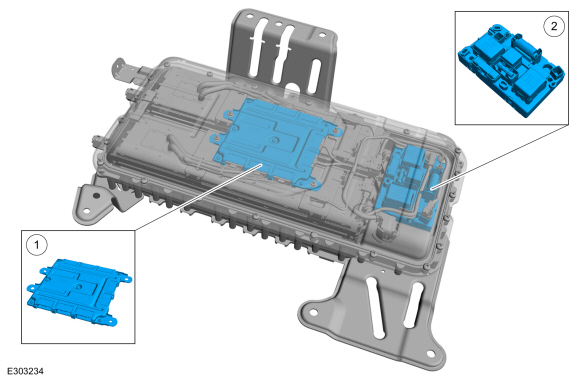

Item Description
1 BECM
2 High voltage battery junction box

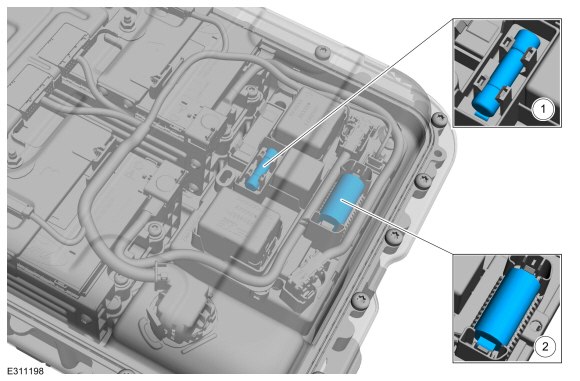

Item Description
1 High Voltage Low Current Fuse
2 High Voltage High Current Fuse

Item Description
1 High Voltage 3 Phase AC -Inverter System Controller to Hybrid drive unit Cable
2 High Voltage cable

    High Voltage Battery, Mounting and Cables

    ..

    Description and Operation - High Voltage Battery, Mounting and Cables - Overview

    OVERVIEW   WARNING: To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system...
