Ford Explorer: Accessory Drive - 2.3L EcoBoost (201kW/273PS) / Description and Operation - Accessory Drive - Component Location

Ford Explorer 2020-2026 Service Manual / Powertrain / Engine / Accessory Drive - 2.3L EcoBoost (201kW/273PS) / Description and Operation - Accessory Drive - Component Location

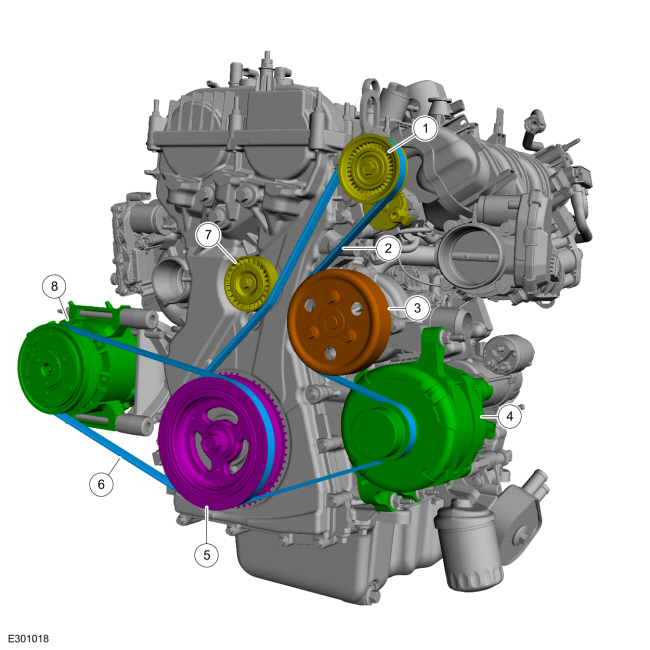

Item Description
1 Accessory drive belt tensioner
2 Accessory drive belt
3 Coolant pump pulley
4 Generator
5 Crankshaft pulley
6 A/C compressor belt
7 Accessory drive belt idler
8 A/C compressor

    Accessory Drive - 2.3L EcoBoost (201kW/273PS)

    ..

    Diagnosis and Testing - Accessory Drive

    Inspection and Verification Verify the customer concern. Visually inspect for obvious signs of mechanical damage.   Visual Inspection Chart Mechanical ..
