Kia Picanto: LCD display / Master warning mode

Kia Picanto 2024-2026 Owner's Manual / Driver Adjustments / LCD display / Master warning mode

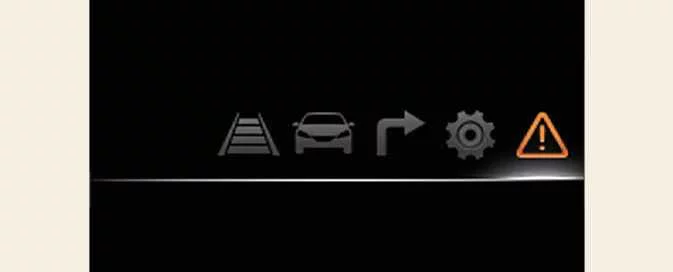

Kia Picanto instrument cluster master warning indication

Kia Picanto LCD master warning display for a vehicle system condition

The master warning indication alerts the driver to vehicle conditions requiring attention. Depending on the equipment fitted, these can include:

A malfunction of Forward Collision-Avoidance Assist, if equipped.
A blocked radar affecting Forward Collision-Avoidance Assist, if equipped.
A malfunction of Blind-Spot Collision-Avoidance Assist, if equipped.
A blocked radar affecting Blind-Spot Collision-Avoidance Assist, if equipped.
A Tyre Pressure Monitoring System (TPMS) failure, a low tyre pressure warning where equipped, or another condition covered by the master warning function.

When one of these conditions is present, the Master Warning icon () appears on the LCD display. Once the condition causing the warning has been resolved, the master warning light switches off and the icon disappears.
