Kia Picanto: Driver Adjustments / Instrument cluster

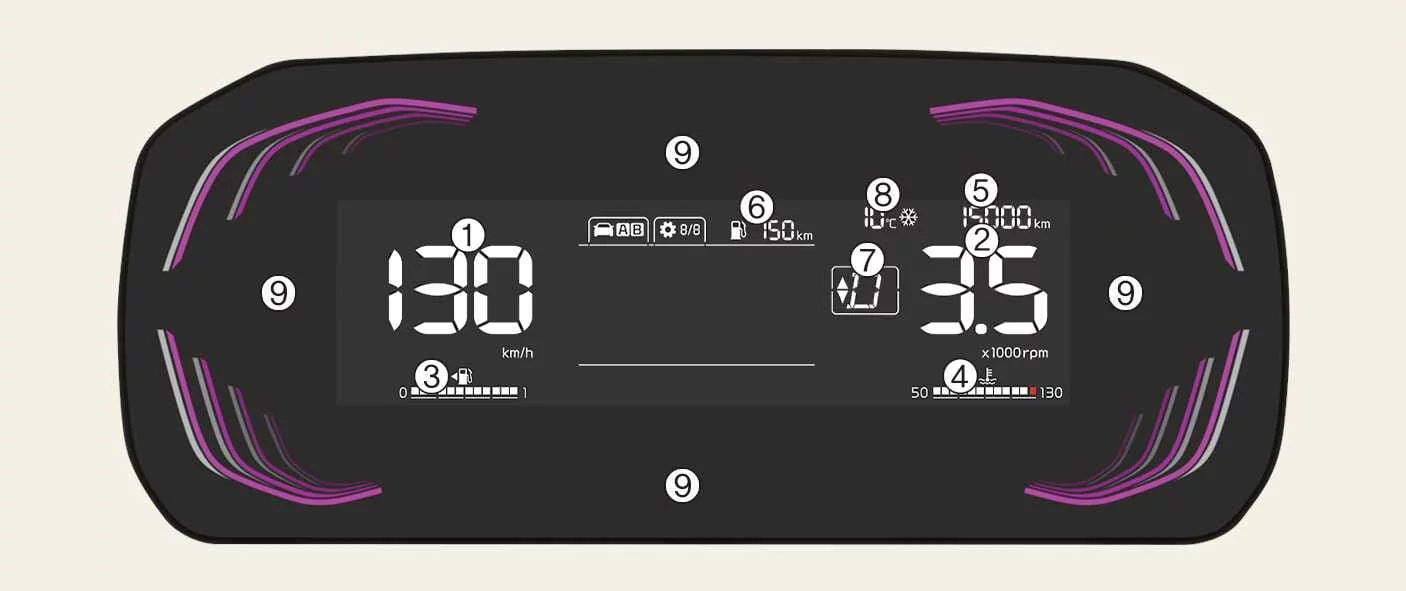

Figure 1. Type A

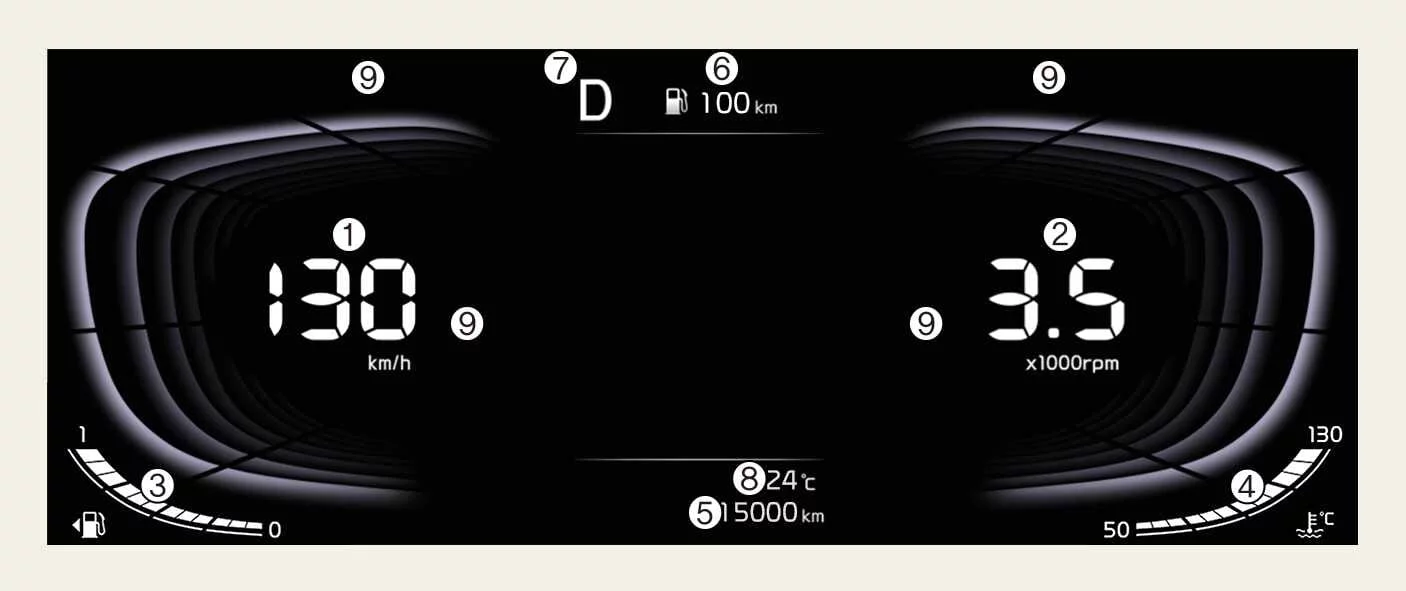

Figure 2. Type B

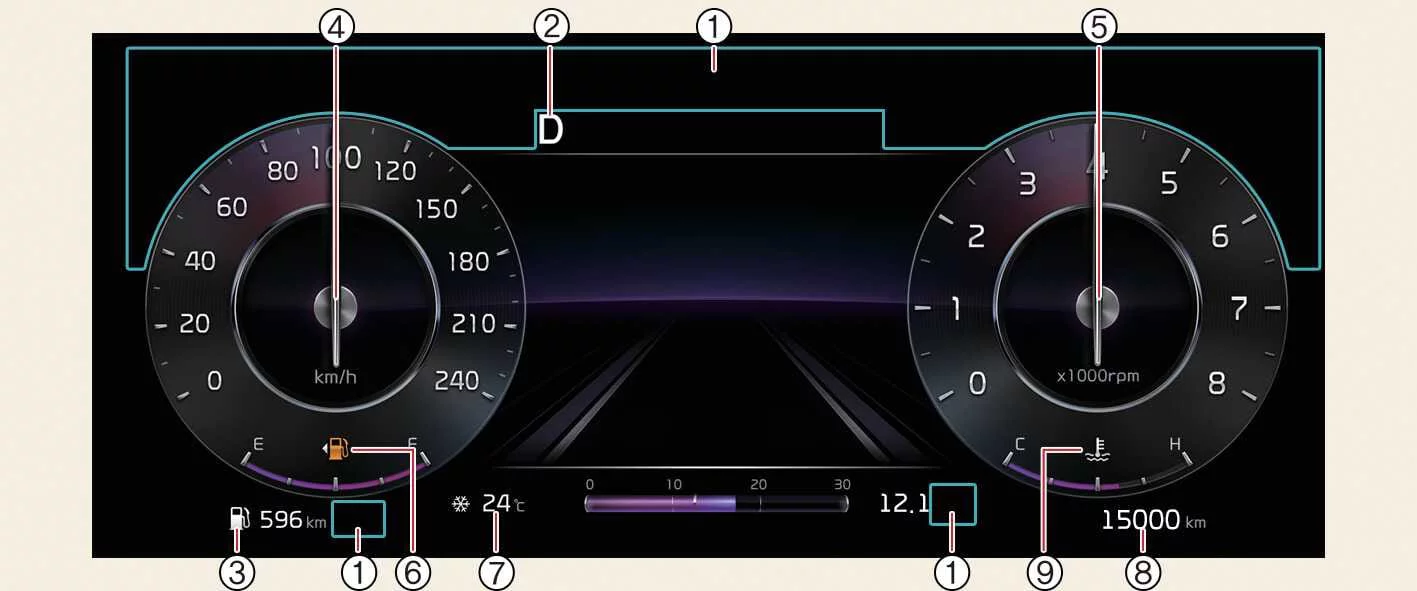

Figure 3. Type C

1. Speedometer: Displays the vehicle’s travelling speed.

2. Tachometer: Indicates engine speed.

3. Fuel gauge: Shows the fuel level in the tank.

4. Engine coolant temperature gauge: Indicates the temperature of the engine coolant.

5. Odometer: Records the total distance travelled by the vehicle.

6. Distance to empty: Displays the estimated distance that can be travelled with the remaining fuel.

7. Transmission shift indicator: Presents the applicable transmission or gear-shift information.

8. Outside temperature gauge: Displays the outside air temperature.

9. Warning and indicator lights: Communicate vehicle operating states and conditions requiring the driver’s attention.

The instrument cluster fitted to your Kia Picanto may differ from these illustrations. Use the diagram that corresponds to your vehicle, and refer to the “Gauges” section for more detailed explanations of the instruments and their readings.
