Ford Explorer: Second Row Seats / Removal and Installation - Second Row Seat - Vehicles With: Second Row Captain Chairs

Ford Explorer 2020-2023 Service Manual / Body and Paint / Body and Paint / Second Row Seats / Removal and Installation - Second Row Seat - Vehicles With: Second Row Captain Chairs

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

  WARNING: The following procedure describes critical repair steps required for correct seat component installation. Follow all notes and steps carefully. Do not place any objects between the seat components and the body of the vehicle, nor any objects within a joint internal to the seat structure. Failure to follow step instructions may result in incorrect operation of the seat components and increases the risk of serious personal injury.

NOTE: LH (left hand) shown, RH (right hand) similar.

NOTE: Removal steps in this procedure may contain installation details.

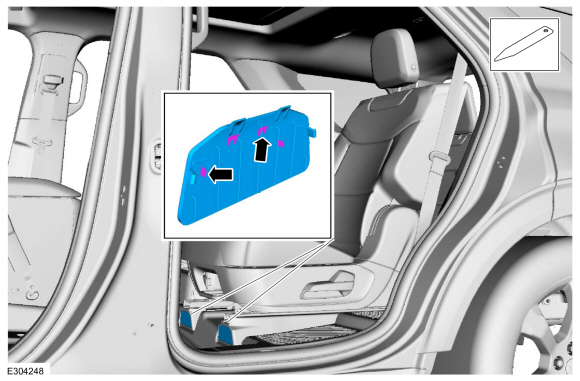

  1. Remove the second row seat front bolt covers.
    Use the General Equipment: Interior Trim Remover

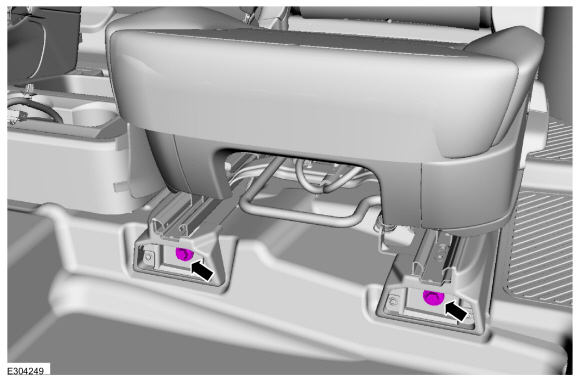

  1. Remove the second row front seat bolts.
    Torque: 35 lb.ft (48 Nm)

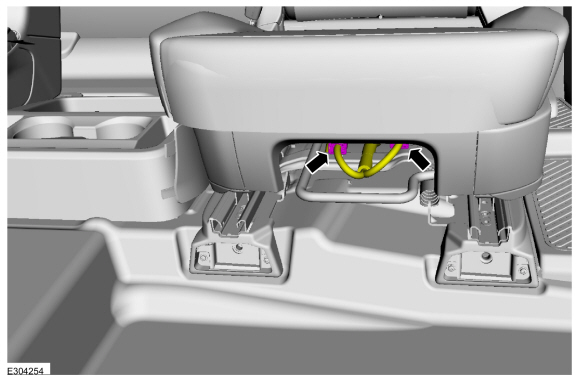

  1. Disconnect the second row seat electrical connectors.

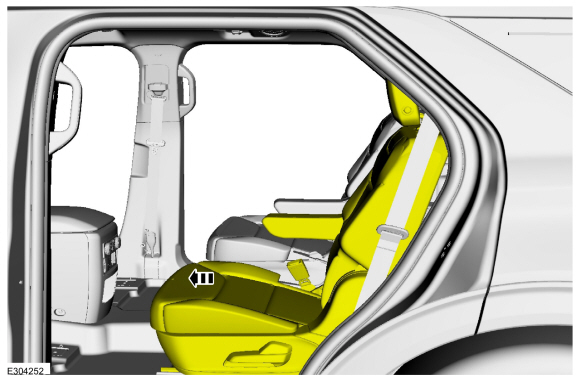

  1. Position the seat to the full forward position.

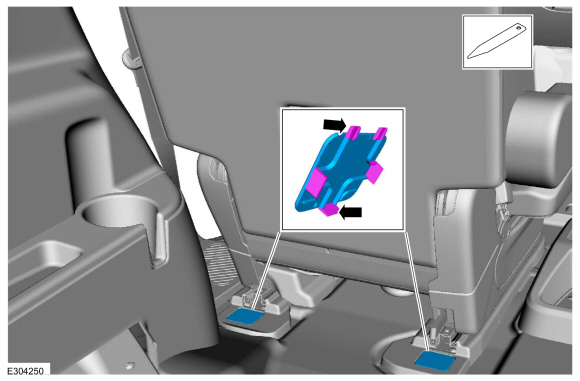

  1. Remove the second row seat bolt covers.
    Use the General Equipment: Interior Trim Remover

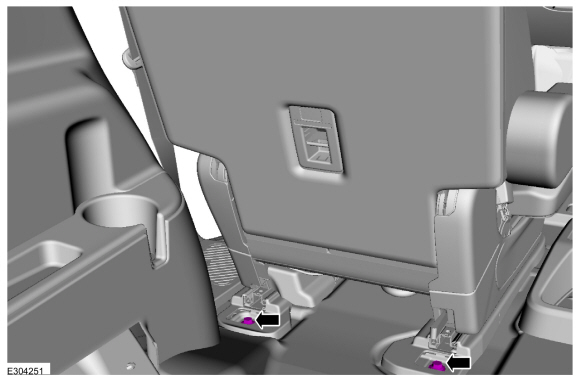

  1. Remove the second row seat rear bolts.
    Torque: 35 lb.ft (48 Nm)

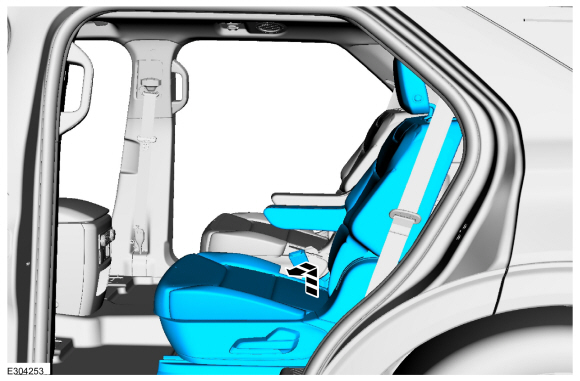

  1. Remove the second row seat.

Installation

  1. To install, reverse the removal procedure.
