Ford Explorer: Body Closures / Removal and Installation - Rear Door

Ford Explorer 2020-2022 Service Manual / Body and Paint / Body and Paint / Body Closures / Removal and Installation - Rear Door

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

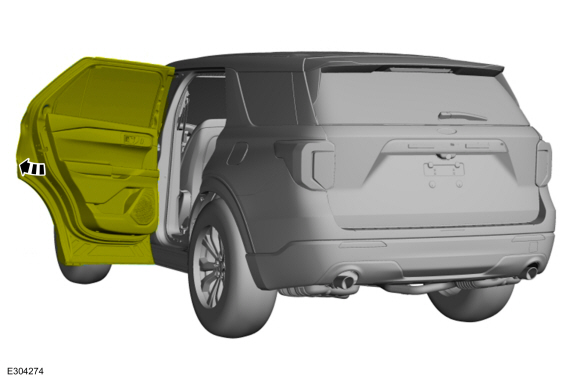

  1. Open the door.

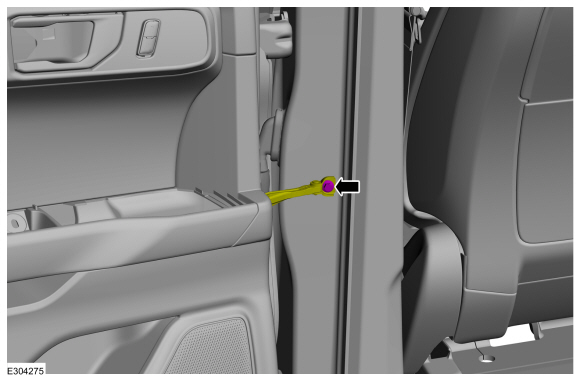

  1. Remove the check arm bolt.
    Torque: 18 lb.ft (25 Nm)

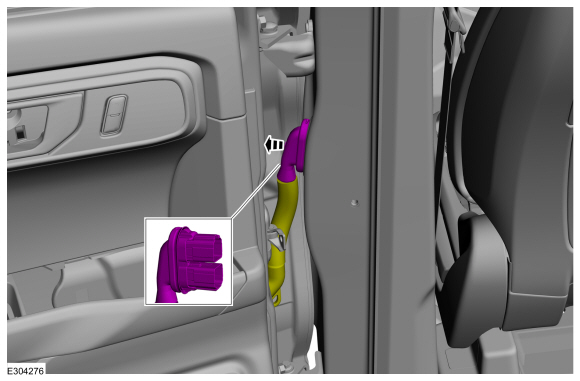

  1. Disconnect the rear door electrical connector.

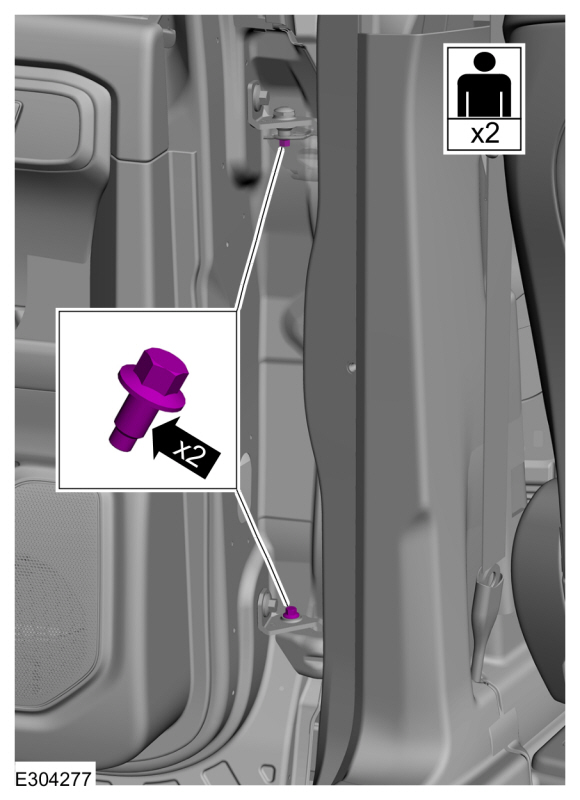

  1. NOTE: This step requires the aid of another technician.

    Remove the door hinge pivot bolts.
    Torque: 22 lb.ft (30 Nm)

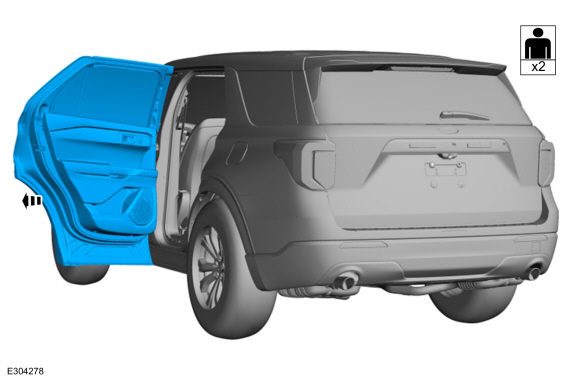

  1. NOTE: This step requires the aid of another technician.

    Remove the door.

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Check the door-to-body alignment. Align the door as necessary. Refer to: Rear Door Alignment (501-03 Body Closures, General Procedures).
