Ford Explorer: Parking Brake and Actuation / Removal and Installation - Parking Brake Actuator Motor

Ford Explorer 2020-2023 Service Manual / Chassis / Brake System / Parking Brake and Actuation / Removal and Installation - Parking Brake Actuator Motor

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH similar.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

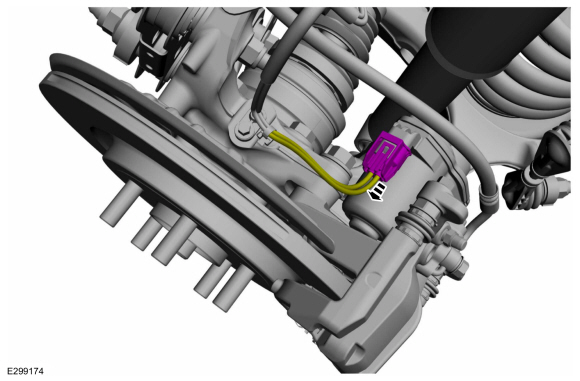

  1. Disconnect the parking brake actuator motor electrical connector.
  1. NOTE: If there is evidence of brake fluid found in or around the parking brake actuator motor a new brake caliper and actuator motor assembly must be installed.

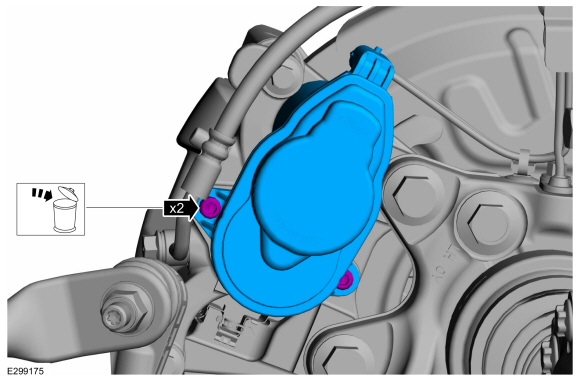

    Remove the 2 bolts and the parking brake actuator motor. Discard the bolts.
    Torque: 97 lb.in (11 Nm)
  1. Remove and discard the O-ring.

Installation

  1. To install, reverse the removal procedure.

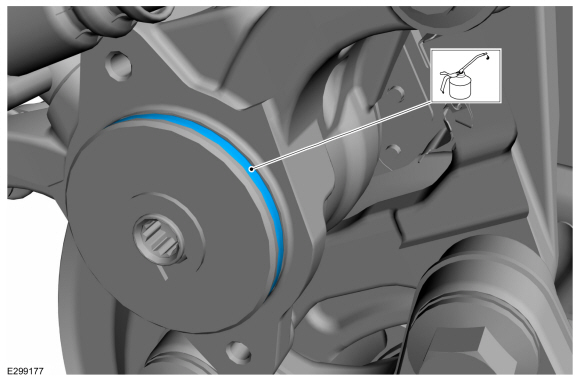

  1. Install and lubricate the O-ring with specified material.
    • Material: HU7J-19A506-CA
