Ford Explorer: Fuel Tank and Lines - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Fuel Level Sensor

Ford Explorer 2020-2024 Service Manual / Powertrain / Fuel System - General Information / Fuel Tank and Lines - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Fuel Level Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the fuel pump sender unit.
Refer to: Fuel Pump and Sender Unit (310-01A Fuel Tank and Lines - 2.3L EcoBoost (201kW/273PS), Removal and Installation).

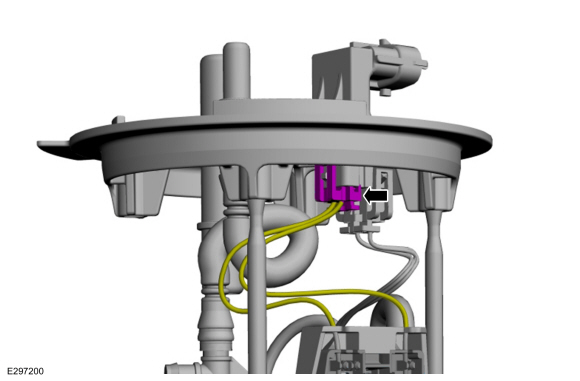

Disconnect the electrical connector.

1. NOTE: Take extra care not to damage the fuel tank level sensor float and arm.

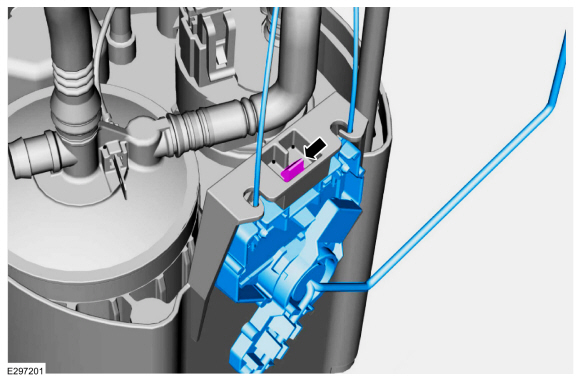

  Release the retainer tab.
1. Remove the Fuel Level Sender.

Installation

To install, reverse the removal procedure.

Fuel Tank and Lines - 2.3L EcoBoost (201kW/273PS)

Removal and Installation - Fuel Lines

Removal NOTE: Removal steps in this procedure may contain installation steps. Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Informat..
