Ford Explorer: Body Closures / Removal and Installation - Front Door Check Arm

Ford Explorer 2020-2022 Service Manual / Body and Paint / Body and Paint / Body Closures / Removal and Installation - Front Door Check Arm

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

  1. Open the door.

Vehicles with police package

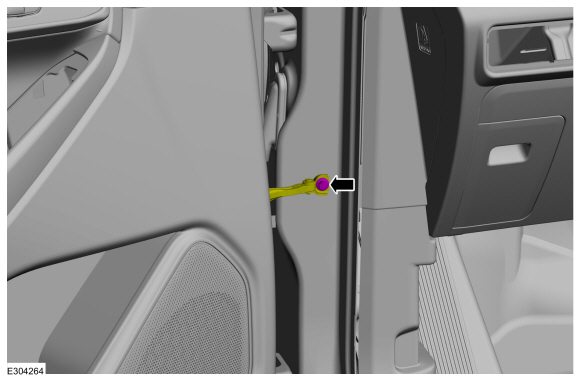

  1. Remove the check arm bolt and position aside the check arm and tether strap.
    Torque: 18 lb.ft (25 Nm)

Vehicles without police package

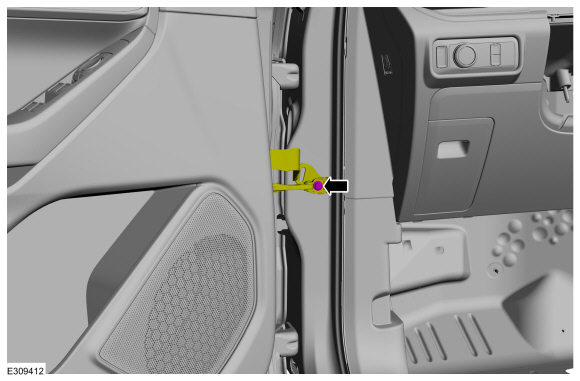

  1. Remove the check arm bolt and position aside the check arm.
    Torque: 18 lb.ft (25 Nm)

All vehicles

  1. Remove the front door trim panel.
    Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the front door speaker.
    Refer to: Front Door Speaker (415-00A Information and Entertainment System - General Information - Vehicles Without: SYNC 3, Removal and Installation).
  1. Remove the door check arm cover.
  1. NOTE: Door removed from vehicle for clarity.

    Remove the front door check arm nuts.
    Torque: 80 lb.in (9 Nm)
  1. Remove the front door check arm assembly.

Installation

  1. To install, reverse the removal procedure.
