Ford Explorer: Engine - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Flexplate

Ford Explorer 2020-2023 Service Manual / Powertrain / Engine / Engine - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Flexplate

Special Tool(s) / General Equipment

303-103 (T74P-6375-A)
Holding Tool, Flywheel
T74P-77000-A
TKIT-2009TC-F

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Remove the automatic transmission.
    Refer to: Transmission - 2.3L EcoBoost (201kW/273PS) (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal and Installation).

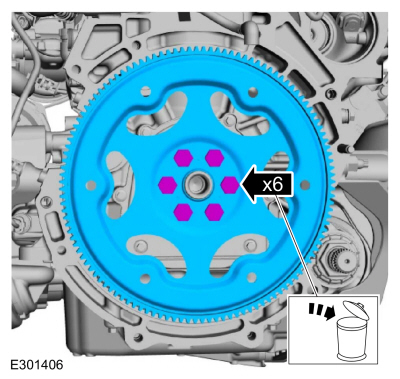

    • NOTE: Do not reuse the flexplate bolts.

      Remove the bolts and the flexplate.
    • Discard the bolts.

Installation

    • NOTE: Special bolts are used for installation. Do not use standard bolts.

      Install the flexplate and the new bolts finger-tight.
    • Install Special Service Tool: 303-103 (T74P-6375-A)  Holding Tool, Flywheel.
    • Tighten the bolts in sequence shown.
      Torque:
        Stage 1:  37 lb.ft (50 Nm)
        Stage 2:  59 lb.ft (80 Nm)
        Stage 3:  83 lb.ft (112 Nm)
  1. Install the automatic transmission.
    Refer to: Transmission - 2.3L EcoBoost (201kW/273PS) (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal and Installation).
  1. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
