Ford Explorer: Engine Emission Control - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Exhaust Gas Recirculation (EGR) Outlet Tube

Ford Explorer 2020-2025 Service Manual / Powertrain / Engine / Engine Emission Control - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Exhaust Gas Recirculation (EGR) Outlet Tube

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the EGR inlet tube.
    Refer to: Exhaust Gas Recirculation (EGR) Inlet Tube (303-08A Engine Emission Control - 2.3L EcoBoost (201kW/273PS), Removal and Installation).

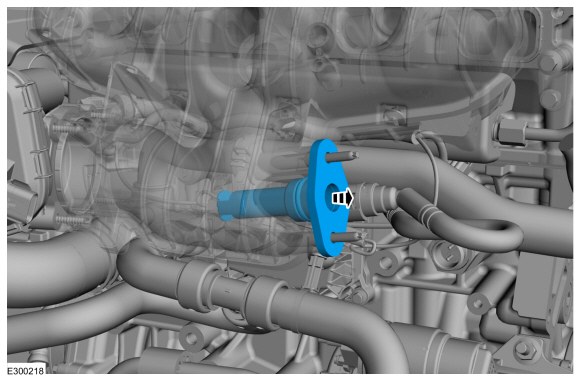

  1. Remove the EGR out let tube.
IPTV Free Trial

Installation

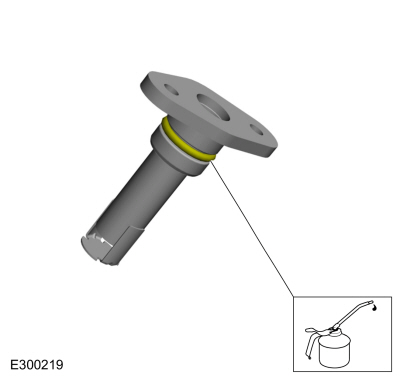

  1. Lubricate the o-ring seal with clean engine oil. Replace the o-ring if necessary.
  1. To install, reverse the removal procedure.
