Ford Explorer: Engine Emission Control - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Exhaust Gas Recirculation (EGR) Back Pressure Sensor

Ford Explorer 2020-2023 Service Manual / Powertrain / Engine / Engine Emission Control - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Exhaust Gas Recirculation (EGR) Back Pressure Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the air cleaner outlet pipe.
    Refer to: Air Cleaner Outlet Pipe (303-12A Intake Air Distribution and Filtering - 2.3L EcoBoost (201kW/273PS), Removal and Installation).

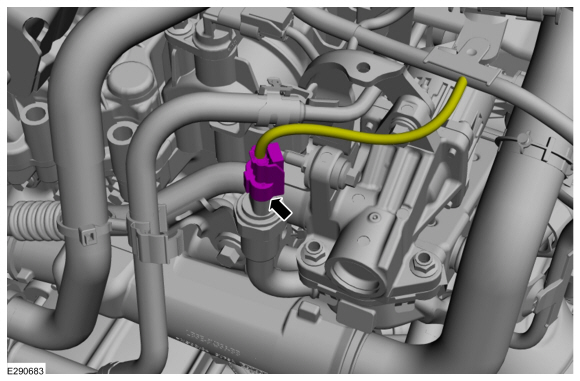

  1. Disconnect the electrical connector.

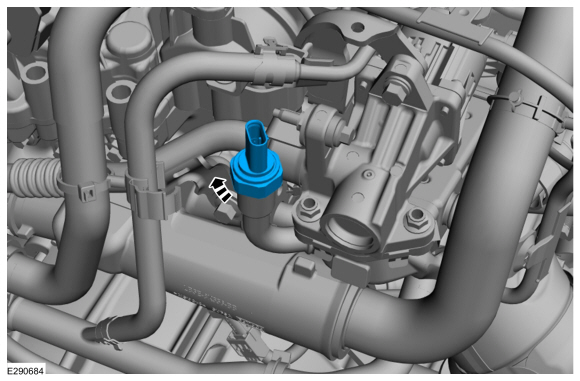

  1. Remove the EGR back pressure sensor.
    Torque: 97 lb.in (11 Nm)

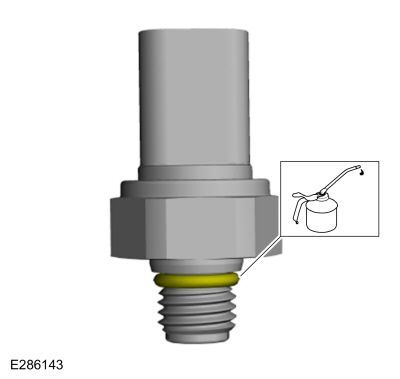

  1. Lubricate the o-ring seal with clean engine oil. Replace the o-ring if necessary.

Installation

  1. To install, reverse the removal procedure.
