Ford Explorer: Engine Emission Control - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Exhaust Gas Recirculation (EGR) Coolant Outlet Temperature Sensor
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

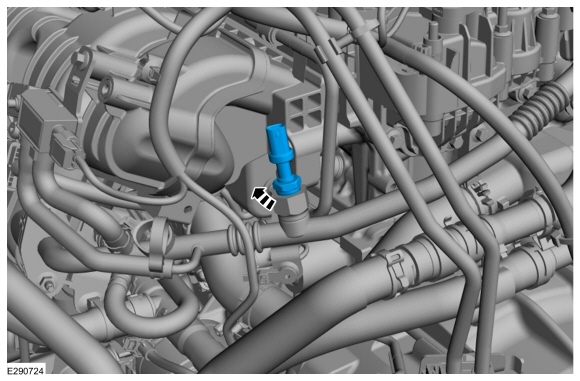

Disconnect the EGR coolant outlet temperature sensor electrical connector.
-
Remove the EGR coolant outlet temperature sensor.
Torque:
133 lb.in (15 Nm)
-

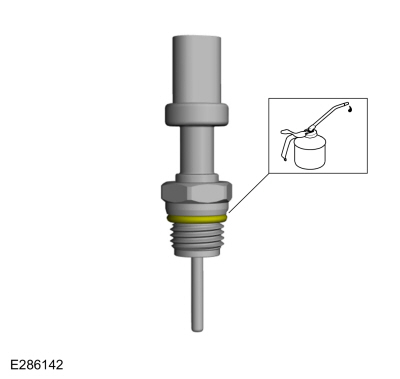

Lubricate the o-ring seal with clean engine oil. Replace the o-ring if necessary.
Installation
-
To install, reverse the removal procedure.
