Removal

All vehicles

  1. NOTE: Removal steps in this procedure may contain installation details.

    NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.

    Using a diagnostic scan tool, begin the PMI process for the CCM following the on-screen instructions.
  1. Remove the front bumper cover.
    Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

Cruise Control Module (CCM)

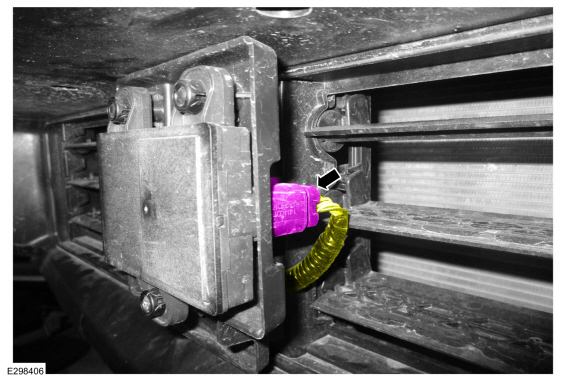

  1. Disconnect the CCM electrical connector.
  1. Separate the grommets from the CCM bracket studs and remove the CCM.
  1. Inspect the grommets for damage. Replace the CCM if necessary.

Cruise Control Module (CCM) bracket

  1. Disconnect the CCM electrical connector.
  1. Separate the grommets and remove the CCM.
  1. Remove the CCM bracket screws and the CCM bracket.
    Torque: 44 lb.in (5 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. NOTE: This step is only necessary when installing a new component.

    Using a diagnostic scan tool, complete the PMI process for the CCM following the on-screen instructions.
  1. Align the CCM.
    Refer to: Cruise Control Radar Alignment (419-03B Cruise Control - Vehicles With: Adaptive Cruise Control With Lane Centering, General Procedures).

    General Procedures - Cruise Control Radar Alignment

    Activation Vertical Alignment NOTE: In order to align the CCM, the front bumper cover must be removed to access the sensor and the vehicle must be in a wheel alignment bay station so that the ..
