Ford Explorer: Engine System - General Information / General Procedures - Piston Ring End Gap

Ford Explorer 2020-2025 Service Manual / Powertrain / Engine / Engine System - General Information / General Procedures - Piston Ring End Gap

Special Tool(s) / General Equipment

Feeler Gauge

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

  1. https://magicaliptv.com/iptv-free-trials/

    NOTE: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.

    NOTE: Piston rings should not be transferred from one piston to another.

    NOTE: The cylinder bore must be within specification for taper and out-of-round.

    Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.

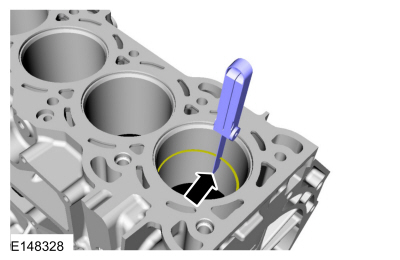

  1. Using the Feeler Gauge Set measure the top piston ring end gap and the second piston ring end gap
    Use the General Equipment: Feeler Gauge

    General Procedures - Piston Inspection

    Inspection NOTE: Do not use a caustic cleaning solution or a wire brush to clean the pistons or damage can occur. Clean and inspect the (1) ring lands, (2) pin bosses, (3) skirts and th..

    General Procedures - Piston Selection

    Check NOTE: Refer to the appropriate Section 303-01 for the specifications. NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston..
