Ford Explorer: Engine System - General Information / General Procedures - Connecting Rod Bearing Journal Clearance

Ford Explorer 2020-2026 Service Manual / Powertrain / Engine / Engine System - General Information / General Procedures - Connecting Rod Bearing Journal Clearance

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

  1. NOTE: The crankshaft connecting rod journals must be within specifications to check the connecting rod bearing journal clearance.

    Remove the connecting rod bearing cap and connecting rod bearing.

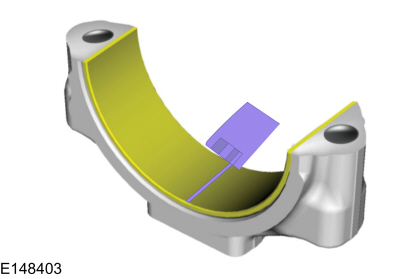

  1. Position a piece of Plastigage across the bearing surface.
  1. NOTE: Do not turn the crankshaft during this step.

    Install and tighten to specifications, then remove the connecting rod bearing cap.
  1. Measure the Plastigage to get the connecting rod bearing journal clearance. The Plastigage should be smooth and flat. A changing width indicates a tapered or damaged connecting rod or connecting rod bearing.

    General Procedures - Camshaft Surface Inspection

    Inspect the camshaft lobes for pitting or damage in the active area. Minor pitting is acceptable outside the active area. The active area includes the opening ramp and closing ramp...

    General Procedures - Crankshaft Main Bearing Journal Clearance

    Check NOTE: Refer to the appropriate Section 303-01 for the specification. NOTE: Crankshaft main bearing journals must be within specifications before checking journal clearance...
