Ford Explorer: Wipers and Washers / Removal and Installation - Windshield Washer Fluid Level Sensor

Ford Explorer 2020-2022 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Removal and Installation - Windshield Washer Fluid Level Sensor

Special Tool(s) / General Equipment

Fluid Suction Gun
Fluid Container

Materials

Name Specification
Motorcraft® Premium Windshield Wash Concentrate with Bitterant
ZC-32-B2
WSS-M14P19-A


Removal

NOTE: Removal steps in this procedure may contain installation details.

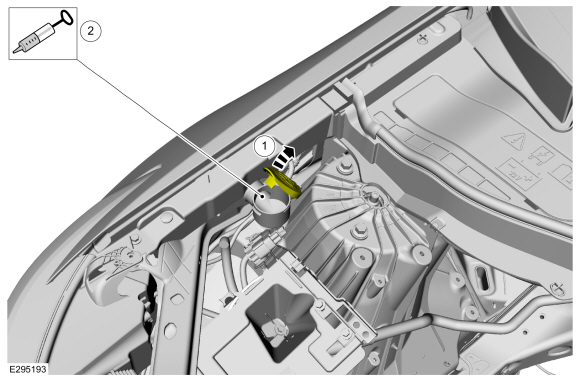

  1. Siphon the windshield washer fluid out.
    1. Open the windshield washer fluid reservoir cap.
    1. Siphon the windshield washer fluid.
      Use the General Equipment: Fluid Suction Gun
      Use the General Equipment: Fluid Container
  1. Remove the RH fender splash shield.
    Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

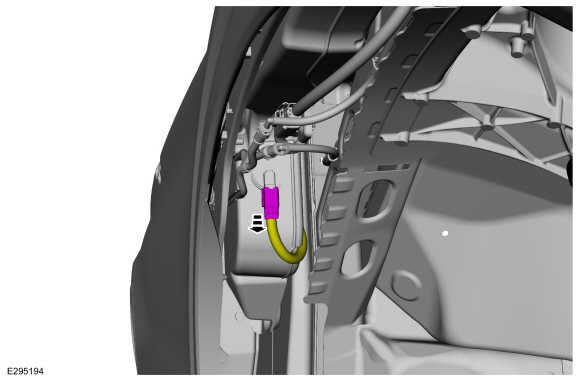

  1. Disconnect the windshield washer fluid level sensor electrical connector.

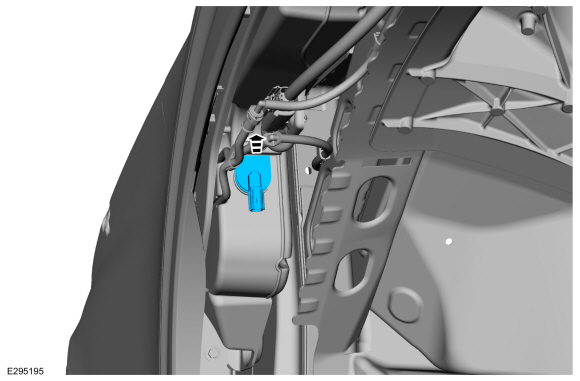

  1. NOTE: Be prepared to collect escaping fluid.

    Remove the windshield washer fluid level sensor.
    Use the General Equipment: Fluid Container

Installation

  1. NOTICE: Do not operate the washer pump prior to filling the windshield washer reservoir. Failure to follow this instruction may result in premature pump failure.

    To install, reverse the removal procedure.
    Material: Motorcraft® Premium Windshield Wash Concentrate with Bitterant / ZC-32-B2 (WSS-M14P19-A)
