Ford Explorer: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Transmission Support Insulator

Ford Explorer 2020-2025 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Transmission Support Insulator

Special Tool(s) / General Equipment

Transmission Jack
Wooden Block

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

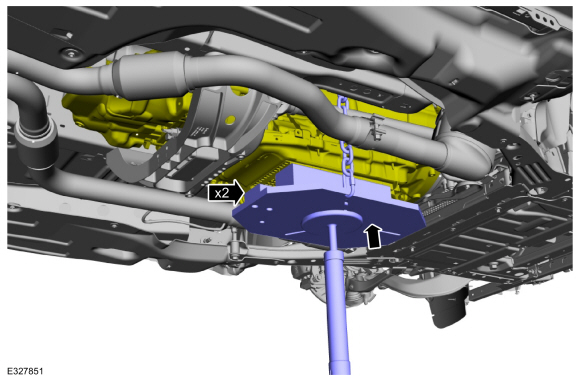

  1. Using a high-lift transmission jack and wooden blocks, support the transmission.
    Use the General Equipment: Transmission Jack
    Use the General Equipment: Wooden Block

Four-Wheel Drive (4WD) vehicles

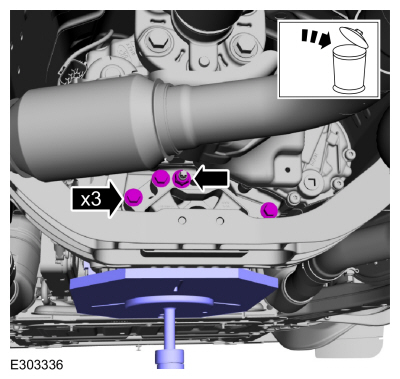

  1. Remove and discard the bolts (W719431) and the nut (W520214).

Rear Wheel Drive (RWD) vehicles

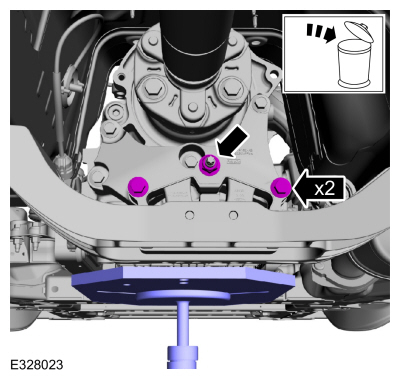

  1. Remove and discard the bolts (W719431) and the nut (W520214).

All vehicles

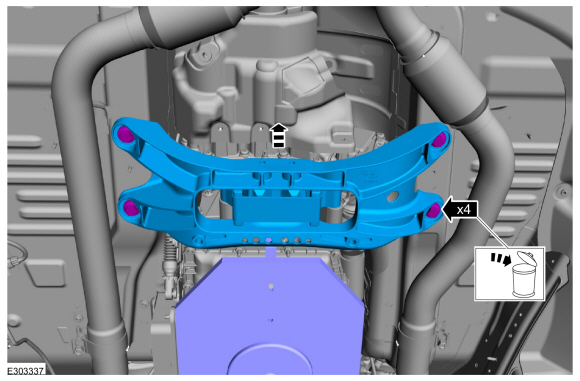

  1. Remove and discard the bolts (W720576) and remove the transmission support insulator.

Installation

  1. Install the transmission support insulator and tighten the new bolts in the sequence shown.
    Torque: 59 lb.ft (80 Nm)

Rear Wheel Drive (RWD) vehicles

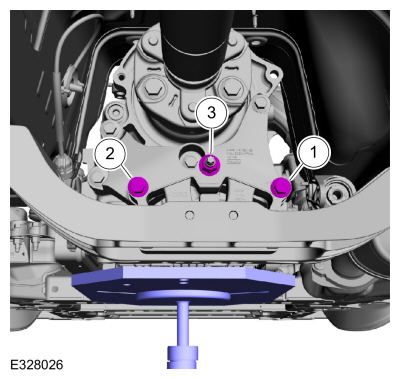

  1. Install the new bolts and the new nut and tighten in the sequence shown.
    Torque: 76 lb.ft (103 Nm)

Four-Wheel Drive (4WD) vehicles

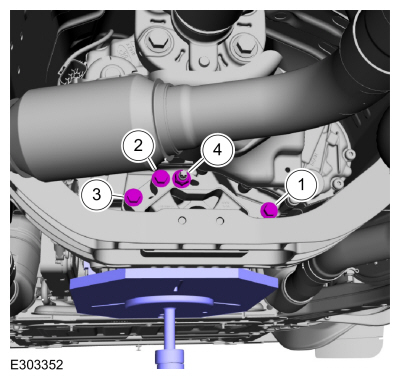

  1. Install the new bolts and the new nut and tighten in the sequence shown.
    Torque: 76 lb.ft (103 Nm)
