Ford Explorer: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Transmission Fluid Pump

Ford Explorer 2020-2022 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Transmission Fluid Pump

Removal

  1. Remove the main control valve body.
    Refer to: Main Control Valve Body (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal and Installation).

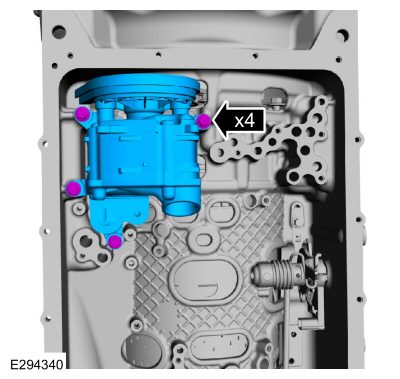

  1. Remove the bolts and the transmission fluid pump.

Installation

  1. Install the transmission fluid pump and the bolts.
    Torque: 71 lb.in (8 Nm)
  1. Install the main control valve body.
    Refer to: Main Control Valve Body (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal and Installation).
