Ford Explorer: Steering Wheel and Column Electrical Components / Removal and Installation - Steering Column Control Switch

Ford Explorer 2020-2022 Service Manual / Chassis / Steering System / Steering Wheel and Column Electrical Components / Removal and Installation - Steering Column Control Switch

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the steering column shrouds.
    Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

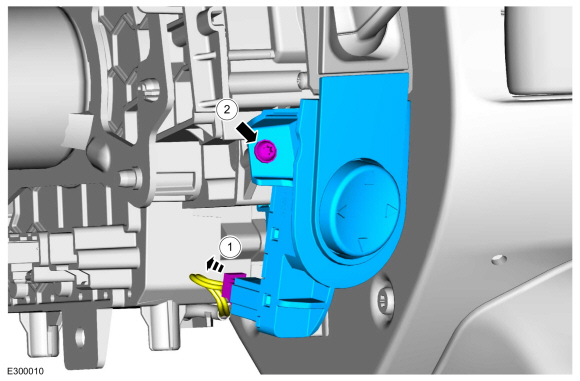

  1. Remove the steering column control switch.
    1. Disconnect the electrical connector.
    1. Remove the retainer and remove the steering column control switch.

Installation

  1. To install, reverse the removal procedure.
