Ford Explorer: Wipers and Washers / Removal and Installation - Rear Parking Aid Camera Washer Jet

Ford Explorer 2020-2025 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Removal and Installation - Rear Parking Aid Camera Washer Jet

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear parking aid camera.
    Refer to: Rear Parking Aid Camera (413-13B Parking Aid - Vehicles With: Parking Aid Camera, Removal and Installation).

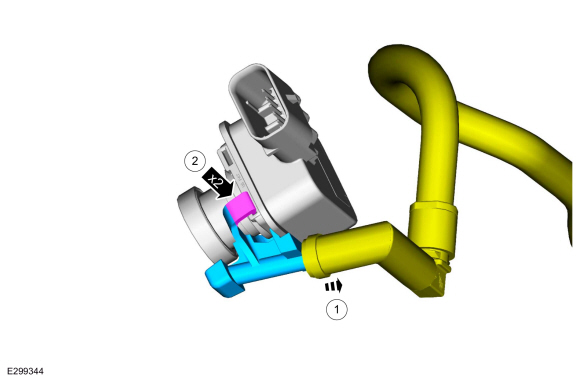

    1. Disconnect the rear parking aid camera washer jet hose.
    1. Release the clips and remove the rear parking aid camera washer jet.

Installation

  1. To install, reverse the removal procedure.
