Ford Explorer: Exhaust System - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Muffler and Tailpipe
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-

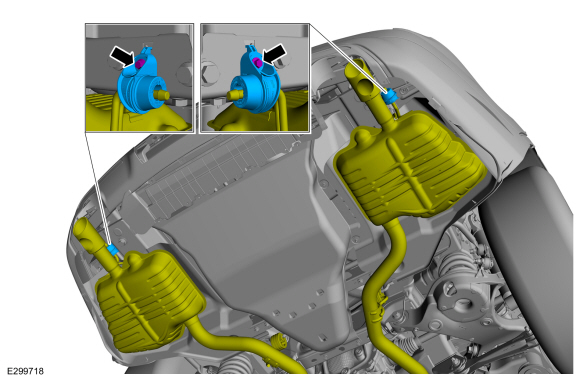

Remove the rear exhaust isolator nuts.
Torque: 26 lb.ft (35 Nm)
.jpg) |
-
Loosen the exhaust clamp.
Torque: 41 lb.ft (55 Nm)
.jpg) |
-
-
Detach the exhaust isolators.
-
Slide the muffler and tailpipe rearward out of the isolators and remove the muffler and tailpipe.
-
Detach the exhaust isolators.
.jpg) |
Installation
-
To install, reverse the removal procedure.
-
Clean all exhaust connections before reassembly.
-
Check the exhaust system for leaks.
