Ford Explorer: Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Upper Sensor

Ford Explorer 2020-2023 Service Manual / Body and Paint / Body and Paint / Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Upper Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear bumper cover.
    Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

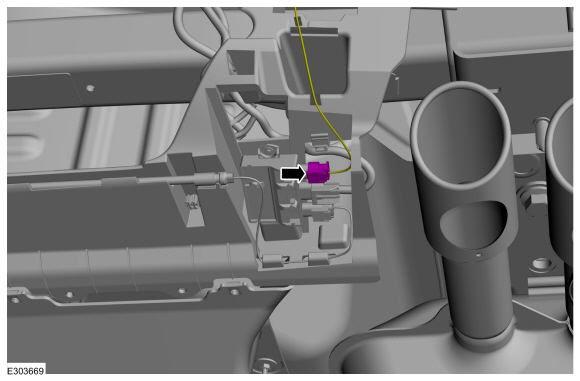

  1. Disconnect the hands-free liftgate actuation upper sensor electrical connector.

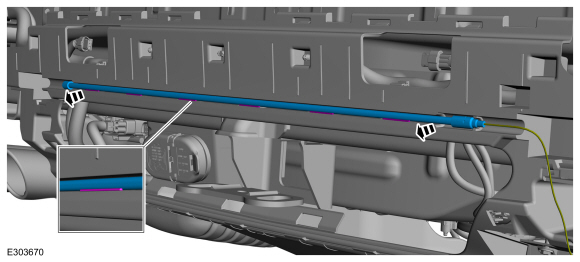

  1. Release the tabs and the hands-free liftgate actuation upper sensor.

Installation

  1. To install, reverse the removal procedure.
