Ford Explorer: Front Seats / Removal and Installation - Front Seat Power Lumbar Assembly - Vehicles With: Multi-Contour Seats

Ford Explorer 2020-2023 Service Manual / Body and Paint / Body and Paint / Front Seats / Removal and Installation - Front Seat Power Lumbar Assembly - Vehicles With: Multi-Contour Seats

Removal

NOTE: Driver seat shown, passenger seat similar.

  1. Remove the SCMG or SCMH.
    Refer to: Driver Multi-Contour Seat Module [SCMG] (501-10A Front Seats, Removal and Installation).

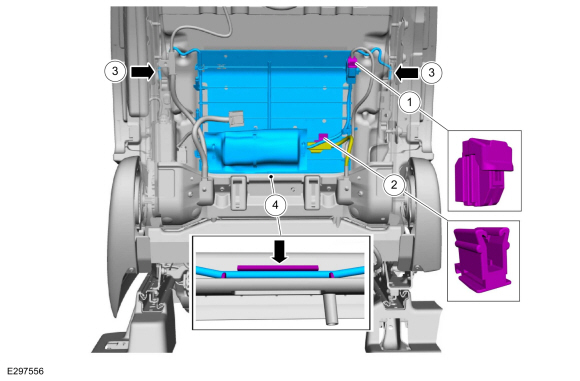

  1. Remove the front seat power lumbar assembly.
    1. Disconnect the electrical connector.
    1. Detach the retainer and position the electrical connector aside.
    1. Detach the upper J-hooks.
    1. Detach the lower retainer.

Installation

  1. To install, reverse the removal procedure.
