Ford Explorer: Police Equipment / Removal and Installation - Flashing Light Emitting Diode (LED) Fog Lamp

Ford Explorer 2020-2023 Service Manual / General Service Information / Police Equipment / Removal and Installation - Flashing Light Emitting Diode (LED) Fog Lamp

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH lamps shown, RH lamps similar.

  1. Remove the front bumper cover.
    Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

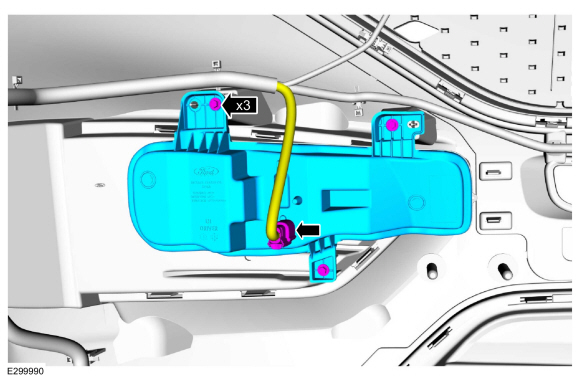

  1. Disconnect the electrical connector, remove the screws and the flashing light emitting diode LED lamp.
    Torque: 11 lb.in (1.2 Nm)

Installation

  1. To install, reverse the removal procedure.
