Ford Explorer: Front Seats / Removal and Installation - Driver Multi-Contour Seat Module [SCMG]

Special Tool(s) / General Equipment

Removal

NOTE: Driver seat SCMG (driver multi-contour seat module) shown, passenger seat SCMH (passenger multi-contour seat module) similar.

1. https://magicaliptv.com/iptv-free-trials/

   NOTE: This step is only necessary when installing a new component.

   NOTE: The PMI (programmable module installation) process must begin with the current SCMG (driver multi-contour seat module) installed. If the current SCMG (driver multi-contour seat module) does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

   Using a diagnostic scan tool, begin the PMI process for the SCMG following the on-screen instructions.


1. Remove the front seat.
   Refer to: Front Seat (501-10A Front Seats, Removal and Installation).


1.

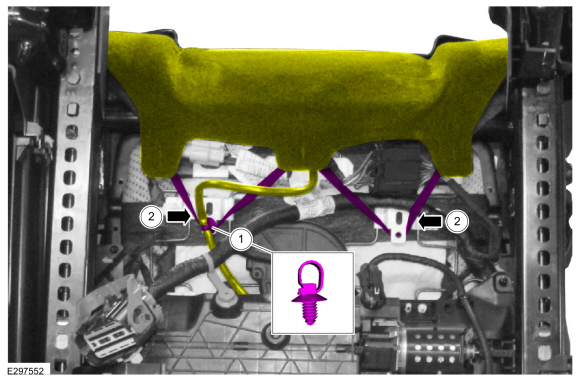

   Release the front seat backrest panel straps.

   1. Detach the retainer and position the wiring harness aside.

   2. Release the backrest panel straps.


1. NOTE: The back panel finish can be easily marred or torn, use care when working around it.

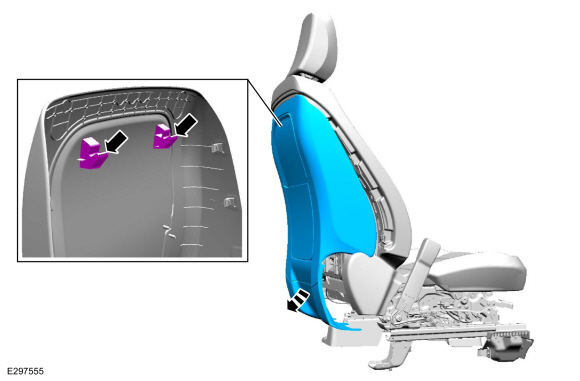

   On both sides, grasp the back panel where it meets the module trim, pull to release the clips and separate the back panel from the module trim.

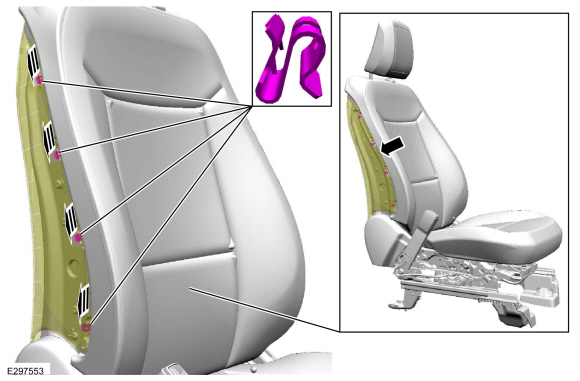

1. Pull out at the bottom, release the clips and detach the back panel from the backrest frame.
   Use the General Equipment: Interior Trim Remover

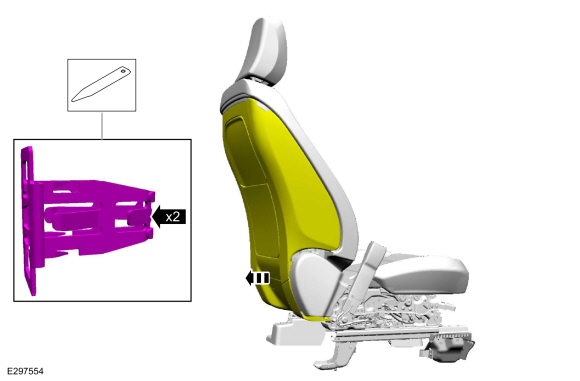

1. Pull down and out and remove the back panel.


1. NOTE: After disconnecting the hose and lock assemblies, verify the black O-ring and white spacer remains with each hose.

   NOTE: When connecting the hose and lock assemblies, an audible click must be heard for correct installation.

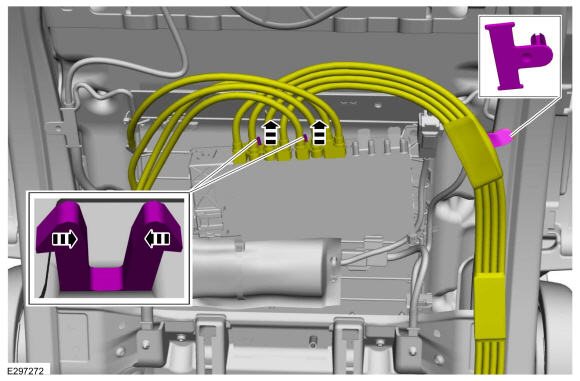

   Detach the multi-contour seat cushion hose retainer, release the locking tabs, disconnect the hose couplings from the SCMG and position aside.


1.

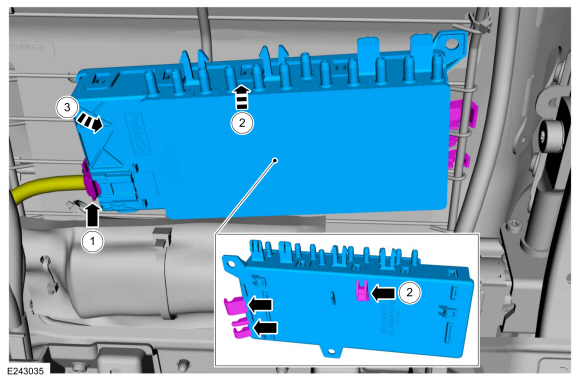

   Remove the SCMG.

   1. Disconnect the electrical connector.

   2. Lift upwards on the SCMG to release the rear locking clip.

   3. Rotate the SCMG to release the side locking clips.


Installation

1. To install, reverse the removal procedure.


1. NOTE: This step is only necessary when installing a new component.

   Using a diagnostic scan tool, complete the PMI process for the SCMG following the on-screen instructions.
