Ford Explorer 2020-2026 Owners Manual / Capacities and Specifications / Engine Specifications - 2.3L EcoBoost™

Drivebelt Routing

2.3L EcoBoost Engine

A - Long drivebelt is on first pulley groove closest to engine.

B - Short drivebelt is on second pulley groove farthest from engine.

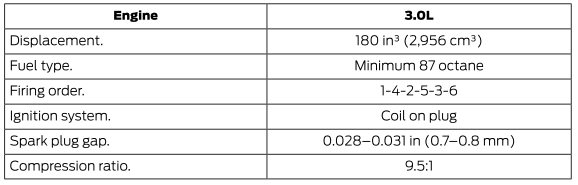

Engine Specifications - 3.0L

    Capacities and Specifications

    ..

    Engine Specifications - 3.0L, ST

    ..

    Other information:

    Ford Explorer 2020-2026 Service Manual: Description and Operation - Second Row Seats - System Operation and Component Description


    System Operation System Diagram - Heated/Ventilated Seats Item Description 1 RHVAC 2 MS-CAN 3 SCMF 4 LH Second Row Seat 5 Cushion Temperature Sensor 6 RH Second Row Seat 7 Backrest Heater Mat 8 Cushion Heater Mat 9 Cushion and Backrest Blower Motors 10 Backrest Heater Mat 11 Cushion Heater Mat ..

    Ford Explorer 2020-2026 Service Manual: Description and Operation - Steering Wheel and Column Electrical Components - Overview


    Steering Column Switches Overview The steering column switches are located on and around the steering column. They enable the driver to control various vehicle functions while remaining focused on driving. The steering column switches consist of: Left multifunction switch - mounted on the left side of the SCCM and is used: to control the turn signals, low/high beam selection and the..
