Ford Explorer: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / Description and Operation - Information and Entertainment System - Component Location
NOTE: The available speaker configurations are shown first. The remaining hidden audio and SYNC system components and various cable routings follow the speaker configurations.
NOTE: Some vehicles may not be equipped with all the optional components shown.
4 Speaker System
.jpg)
| Item | Description |
|---|---|
| 1 | Left/right front door woofer speakers |
| 2 | Left/right rear door woofer speakers |

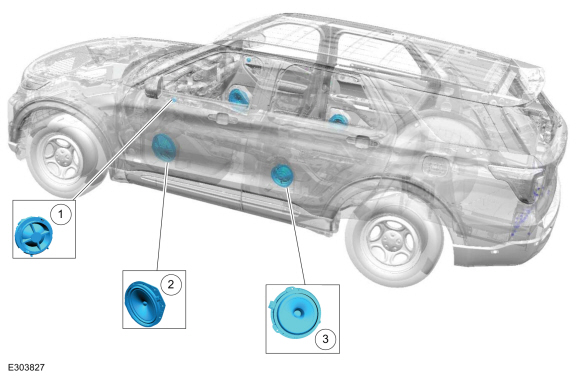

6 Speaker System
.jpg)
| Item | Description |
|---|---|
| 1 | Left/right front door tweeter speakers |
| 2 | Left/right front door woofer speakers |
| 3 | Left/right rear door woofer speakers |
12 Speaker System
.jpg)
| Item | Description |
|---|---|
| 1 | Instrument panel center speaker |
| 2 | Left/right front door tweeter speakers |
| 3 | Left/right front door woofer speakers |
| 4 | Left/right rear door tweeter speakers |
| 5 | Left/right rear door woofer speakers |
| 6 | Left/right D-pillar speakers |
| 7 | Subwoofer speaker |
14 Speaker System
.jpg)
| Item | Description |
|---|---|
| 1 | Instrument panel center speaker |
| 2 | Left/right front door tweeter speakers |
| 3 | Left/right front door woofer speakers |
| 4 | Left/right front door mid-range speakers |
| 5 | Left/right rear door tweeter speakers |
| 6 | Left/right rear door woofer speakers |
| 7 | D-pillar speakers |
| 8 | Subwoofer speaker |
Audio/SYNC System Hidden Components
.jpg)
| Item | Description |
|---|---|
| 1 | APIM ACM |
| 2 | Voice microphone |
| 3 | AM/ FM1 antenna amplifier |
| 4 | Noise filter |
| 5 | ACM |
| 6 | DSP |
| 7 | TCU |
| 8 | FM2 antenna amplifier |
| 9 | ANC microphones |
USB Cable Routing (non-police shown, police option is similar)
.jpg)
| Item | Description |
|---|---|
| 1 | Front USB cable |
| 2 | Rear USB cable |
LVDS Cable Routing (non-police shown, police option is similar)
.jpg)
| Item | Description |
|---|---|
| 1 | LVDS cable |
Lower AM/ FM1 Antenna Cable Routing - Vehicles Equipped With Police Option
.jpg)
| Item | Description |
|---|---|
| 1 | Lower AM/ FM1 antenna cable |
| 2 | AM/ FM1 antenna cable connection to the ACM |
| 3 | AM/ FM1 antenna cable in-line connection |
Lower AM/ FM1 Antenna Cable Routing - Except Vehicles Equipped With Police Option
.jpg)
| Item | Description |
|---|---|
| 1 | Lower AM/ FM1 antenna cable |
| 2 | AM/ FM1 antenna cable connection to the ACM |
| 3 | AM/ FM1 antenna cable in-line connection |
Upper AM/ FM1 Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Upper AM/ FM1 antenna cable |
| 2 | AM/ FM1 antenna cable in-line connection |
Lower FM2 Diversity Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Lower FM2 diversity antenna cable |
| 2 | FM2 diversity antenna cable in-line connection |
Upper FM2 Diversity Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Upper FM2 diversity antenna cable |
| 2 | FM2 diversity antenna cable in-line connection |
Front GPS Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Front GPS antenna cable |
| 2 | Front GPS antenna cable in-line connection |
Center Front GPS Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Center front GPS antenna cable |
| 2 | Front GPS antenna cable in-line connection |
| 3 | Center front GPS antenna cable in-line connection |
Center Rear GPS Antenna Cable Routing (Splitter Cable) - Vehicles Equipped With Satellite Radio
.jpg)
| Item | Description |
|---|---|
| 1 | Center rear GPS antenna cable |
Center Rear GPS Antenna Cable Routing (Jumper Cable) - Vehicles Not Equipped With Satellite Radio
.jpg)
| Item | Description |
|---|---|
| 1 | Center rear GPS antenna cable |

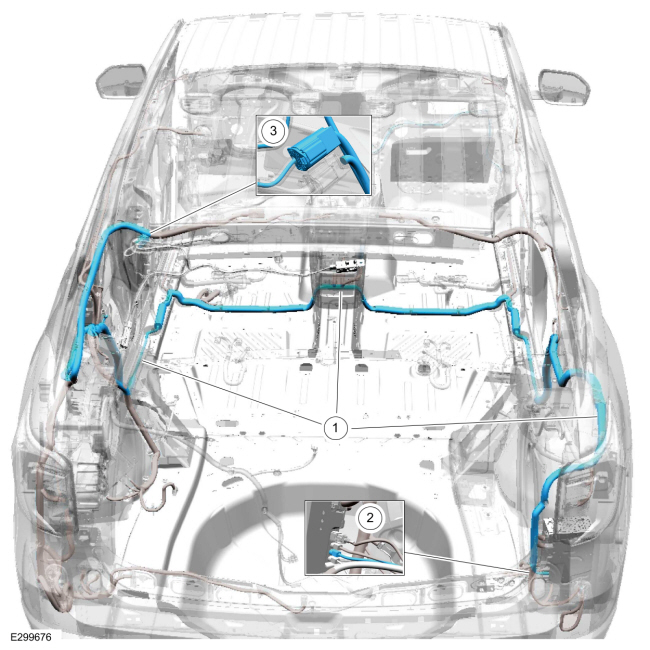

Rear GPS Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Rear GPS antenna cable |
| 2 | Center rear GPS antenna cable in-line connection |
| 3 | Rear GPS antenna cable in-line connection |
TCU Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | TCU antenna cable |
Cellular Antenna Cable Routing
.jpg)
| Item | Description |
|---|---|
| 1 | Cellular antenna cable |
| 2 | Rear GPS antenna cable in-line connection |
Description and Operation - Information and Entertainment System - Overview
Audio System
NOTE:
Refer to the Owner Literature for additional details of the audio system.
AM/ FM Radio
The ACM
can operate when the ignition is on or off...
