Ford Explorer: Evaporative Emissions - 2.3L EcoBoost (201kW/273PS) / Description and Operation - Evaporative Emissions - System Operation and Component Description
System Operation
Refer to the PC/ED manual section 1 Description and Operation.

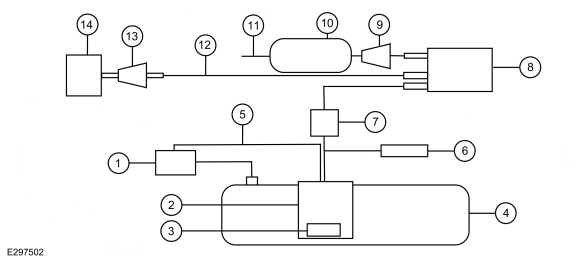

System Diagram
.jpg)
| Item | Description |
|---|---|
| 1 | Fuel tank filler pipe |
| 2 | Fuel delivery module (FDM) |
| 3 | Fuel level sensor (FLS) |
| 4 | Fuel tank |
| 5 | Vapor recirculation line |
| 6 | Fuel tank pressure (FTP) sensor and tube |
| 7 | EVAP vapor blocking valve (VBV) |
| 8 | EVAP carbon canister |
| 9 | EVAP canister valve |
| 10 | EVAP canister inlet filter |
| 11 | Fresh air vent tube |
| 12 | Fuel bundle |
| 13 | EVAP purge valve (EPV) and tube |
| 14 | Intake manifold |
Description and Operation - Evaporative Emissions - Overview
Overview
The EVAP
system prevents hydrocarbon emissions from entering the atmosphere by
storing fuel vapors and routing the vapors to the engine to be consumed
during normal engine operation...
General Procedures - Evaporative Emission System Leak Test
Activation
Phase 1 - Leak Verification
Run the EVAP Test with the scan tool.
NOTE:
Some small leaks may not be detected using the EVAP Test...
