Ford Explorer: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - A Clutch

Ford Explorer 2020-2025 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - A Clutch

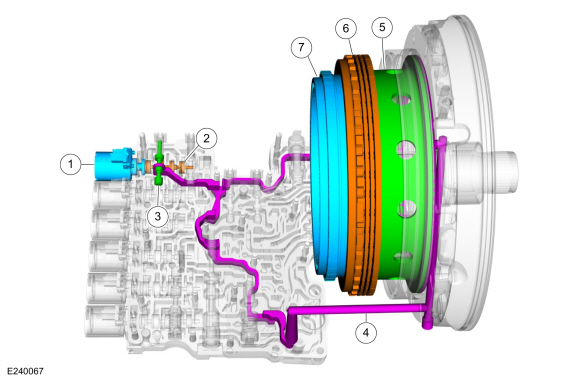

Overview

Item Description
1   SSA
2 A clutch control valve
3 A clutch latch valve
4 A clutch apply circuit
5 A clutch piston
6 A clutch assembly
7 Ring gear No. 1

Ring gear No. 1 is connected to the A clutch. When the A clutch applies, it holds the ring gear No. 1 stationary.

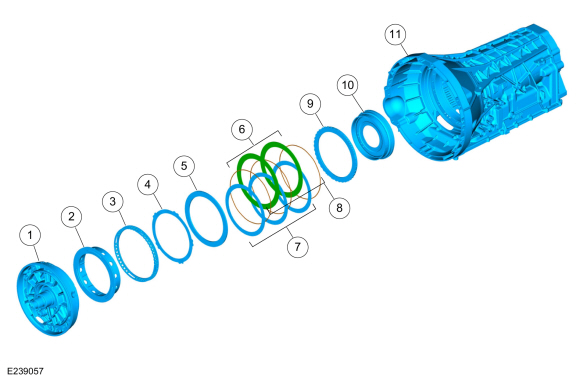

A Clutch Exploded View

Item Description
1 Front support assembly
2 A clutch piston
3 A clutch piston return spring
4 A clutch wave spring
5 A clutch apply plate
6 A clutch steel plates
7 A clutch friction plates
8 A clutch separating springs
9 A clutch pressure plate
10 Ring gear No. 1
11 Transmission case

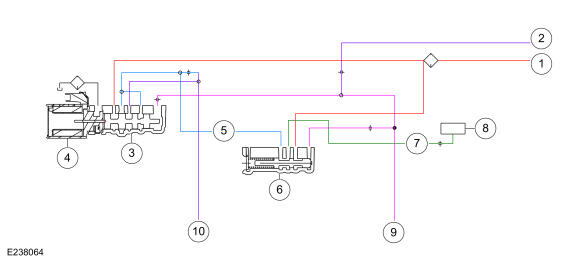

A Clutch Hydraulic Circuits

Item Description
1 Line pressure
2 Pump output
3 A clutch control valve
4   SSA
5 Control pressure to latch valve
6 A clutch latch valve
7 Apply pressure to mechanical A clutch
8 Mechanical A clutch
9 Elevated exhaust pressure
10 Clutch exhaust

A Clutch Hydraulic Operation

Line pressure is supplied to the A clutch control valve and the A clutch latch valve. As SSA turns on, it moves the control valve allowing regulated line pressure to flow to the A clutch latch valve and then to the mechanical A clutch. When the regulated line pressure in the A clutch control circuit reaches approximately 698 kPa (100 psi), the mechanical A clutch is fully applied. The pressure in the A clutch control circuit moves the A clutch latch valve to the left which allows line pressure to hold the mechanical A clutch applied.

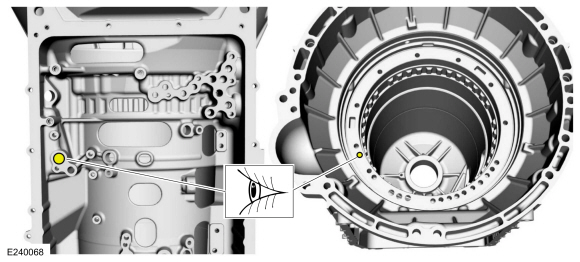

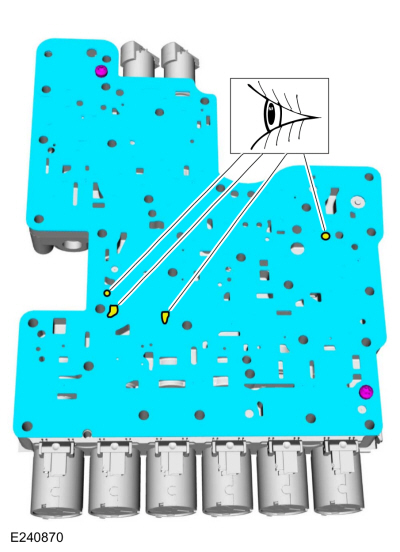

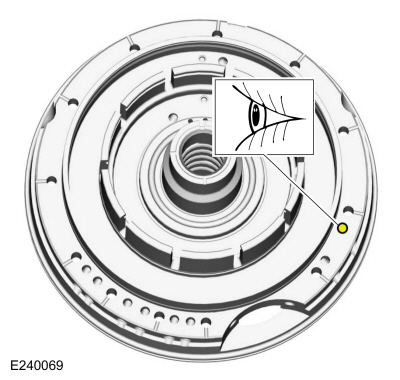

A Clutch Hydraulic Passages
