Ford Explorer: Engine Cooling - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Cooling Fan Motor and Shroud

Ford Explorer 2020-2022 Service Manual / Powertrain / Engine / Engine Cooling - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Cooling Fan Motor and Shroud

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

Removal

  1. Remove the air cleaner.
    Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 2.3L EcoBoost (201kW/273PS), Removal and Installation).

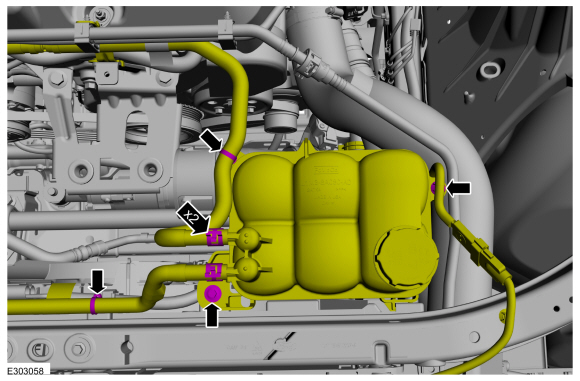

    • Detach the coolant hose retainers.
    • Release the clamps and disconnect the coolant hoses.
      Use the General Equipment: Hose Clamp Remover/Installer
    • Remove the bolt and position the degas bottle aside.
      Torque: 44 lb.in (5 Nm)

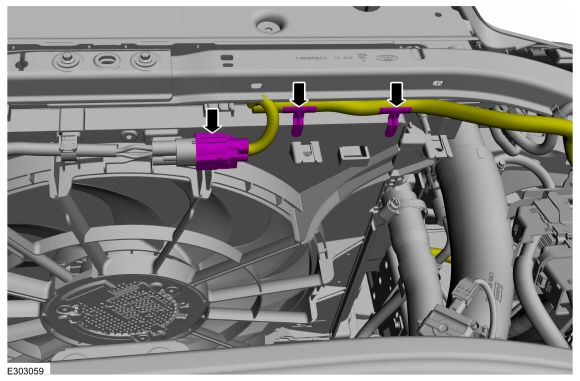

  1. Disconnect the electrical connector and detach the wiring harness retainers.

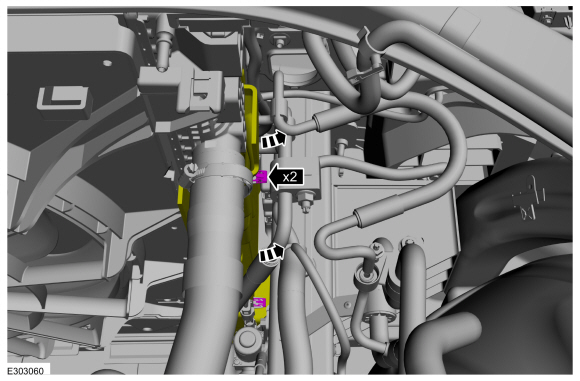

  1. Release the clips and position the radiator air deflector aside.
  1. NOTE: Raise the cooling fan motor and shroud from the RH (Right-Hand) side.

    Remove the bolts and the cooling fan motor and shroud.
    Torque: 71 lb.in (8 Nm)

Installation

  1. To install, reverse the removal procedure.

    Removal and Installation - Coolant Pump

    Special Tool(s) / General Equipment Hose Clamp Remover/Installer Removal NOTE: Removal steps in this procedure may contain installation details...

    Removal and Installation - Cooling Module

    Special Tool(s) / General Equipment Hose Clamp Remover/Installer Removal With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jack..
