EGR system


Item Description
1 Crankcase Ventilation Tube.
2 EGR valve.
3 EGR cooler.
4 EGR coolant outlet temperature sensor.
5 EGR back pressure sensor.
6 EGR inlet tube.

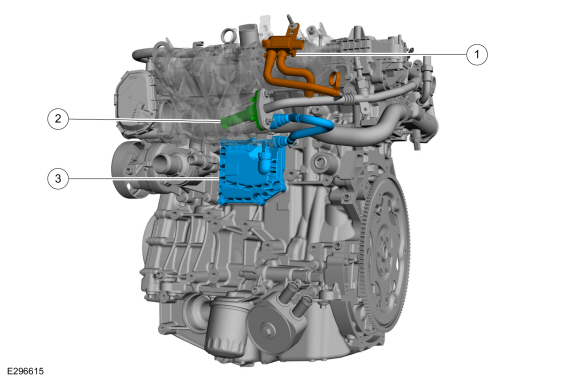

EGR system


Item Description
1 Differential pressure feedback EGR sensor.
2 EGR outlet tube.
3 Crankcase vent oil separator.

    Engine Emission Control - 2.3L EcoBoost (201kW/273PS)

    ..

    Removal and Installation - Exhaust Gas Recirculation (EGR) Valve

    Removal NOTE: Removal steps in this procedure may contain installation details. NOTICE: Do not pull the engine appearance cover forward or sideways to remove...
