Ford Explorer: Capacities and Specifications / Capacities and Specifications - 3.0L

Ford Explorer 2020-2022 Owners Manual / Capacities and Specifications / Capacities and Specifications - 3.0L

Use oil and fluid that meets the defined specification and viscosity grade.

If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in:

  • Component damage not covered by the vehicle warranty.
  • Longer engine cranking periods.
  • Increased emission levels.
  • Reduced engine performance.
  • Reduced fuel economy.
  • Reduced brake performance.

Air Conditioning System

WARNING: The air conditioning refrigerant system contains refrigerant under high pressure. Only qualified personnel should service the air conditioning refrigerant system. Opening the air conditioning refrigerant system can cause personal injury.

Capacities

Materials

Automatic Transmission

Note: Automatic transmissions that require MERCON® ULV transmission fluid should only use MERCON® ULV transmission fluid. The use of any other fluid may cause transmission damage.

Capacities

1 Approximate dry fill capacity. Actual amount may vary during fluid changes.

Materials

Engine Coolant

Capacities

Materials

Engine Oil

An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC.

We recommend Motorcraft® motor oil for your vehicle. If Motorcraft® oil is not available, use motor oils of the recommended viscosity grade that meet API SN PLUS requirements and display the API Certification Mark for gasoline engines.

Capacities

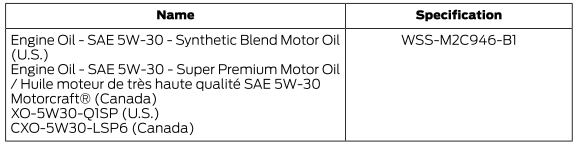

Materials

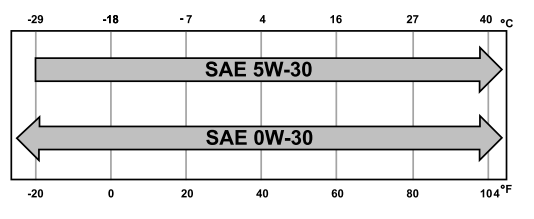

Alternative Engine Oil for Extremely Cold Climates

To improve engine cold start performance, we recommend that you use the following alternative engine oil in extremely cold climates, where the ambient temperature reaches -22.0°F (-30°C) or below.

Materials

Fuel Tank

Capacities

Grease

Materials

Hydraulic Brake System

Materials

Note: We recommend using DOT 4 Low Viscosity (LV) High Performance Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may cause reduced brake performance and not meet our performance standards. Keep brake fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may result in brake system damage and possible failure.

Locks

Materials

Transfer Case

Capacities

Materials

Front Axle

Capacities

Materials

Rear Axle

Capacities

Materials

Washer Reservoir

Capacities

Materials

    Capacities and Specifications - 2.3L EcoBoost™

    Use oil and fluid that meets the defined specification and viscosity grade. If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in: Compone..

    Capacities and Specifications - 3.3L, Gasoline

    Use oil and fluid that meets the defined specification and viscosity grade. If you do not use oil and fluid that meets the defined specification and viscosity grade, it could result in: Compone..
