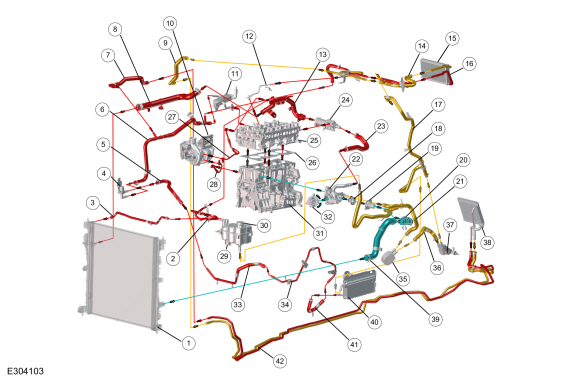

NOTE: Coolant temperature will vary with ambient temperature and load. Temperatures shown are for ambient temperature of 38°C (100°F). Red arrows indicate a temperature over 82.2°C (180°F), Orange arrows indicate a temperature of approximately 82.2°C (180°F), Blue arrows indicate a temperature below 82.2°C (180°F).


Item Description
1 Radiator
2 Engine-to-degas bottle hose
3 Radiator-to-degas bottle hose
4 Transmission coolant control valve
5 Transmission coolant control valve outlet hose
6 Transmission coolant control valve inlet hose
7 Heater hose
8 Upper radiator hose
9 Heater hose
10 Turbocharger
11 EGR cooler
12 Cylinder head/integrated exhaust manifold coolant outlet tube
13 Coolant inlet connector
14 Heater outlet hose
15 Heater core
16 Heater inlet hose
17 Auxiliary pump inlet hose
18 Thermostat
19 Coolant inlet connector
20 Radiator to thermostat hose
21 Engine oil cooler outlet hose
22 Coolant pump adapter
23 Coolant bypass hose
24 Coolant outlet connector
25 Cylinder head
26 Head gasket
27 Turbocharger inlet tube
28 Turbocharger outlet tube
29 Degas bottle
30 Pressure relief cap
31 Cylinder block
32 Coolant pump
33 Coolant hose
34 Oil cooler hose
35 Engine oil cooler
36 Engine oil cooler inlet hose
37 Auxiliary pump
38 Rear heater core
39 Lower radiator hose
40 Transmission oil cooler
41 Transmission oil cooler inlet hose
42 Heater hoses

    Specifications

    Lubricants, Fluids, Sealants and Adhesives Name Specification Fill Capacity Motorcraft® Yellow Concentrated Antifreeze/CoolantVC-13-G WSS-M97B57-A1  14...

    Description and Operation - Engine Cooling - System Operation and Component Description

    System Operation Engine coolant flows primarily from the engine to the radiator circuit and back to the coolant pump. Coolant is sent from the coolant pump through the engine block and cylind..
