Ford Explorer: Exterior Trim and Ornamentation / Removal and Installation - Rocker Panel Moulding

Ford Explorer 2020-2024 Service Manual / Body and Paint / Body and Paint / Exterior Trim and Ornamentation / Removal and Installation - Rocker Panel Moulding

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

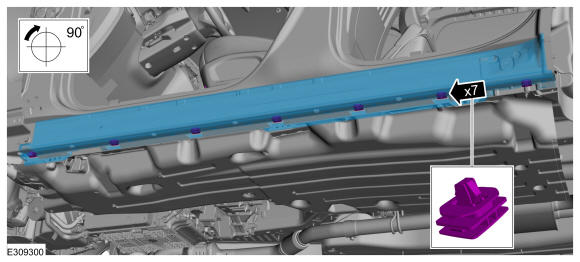

Using a non-marring trim tool disengage the W-clip fasteners.

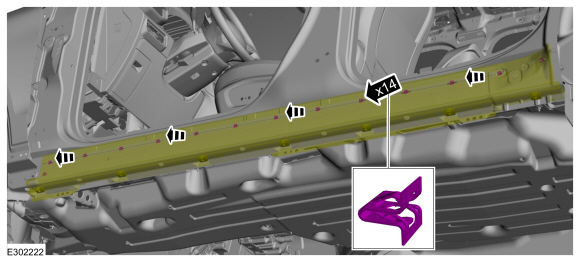

Rotate the clips and remove the rocker panel moulding.

Installation

To install, reverse the removal procedure.
