Ford Explorer: Second Row Seats / Removal and Installation - Second Row Center Seat Cushion Cover
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Base vehicle shown, police similar.
-
Remove the second row center seat.
Refer to: Second Row Center Seat (501-10B Second Row Seats, Removal and Installation).
Refer to: Second Row Center Seat - Police (501-10B Second Row Seats, Removal and Installation).
-

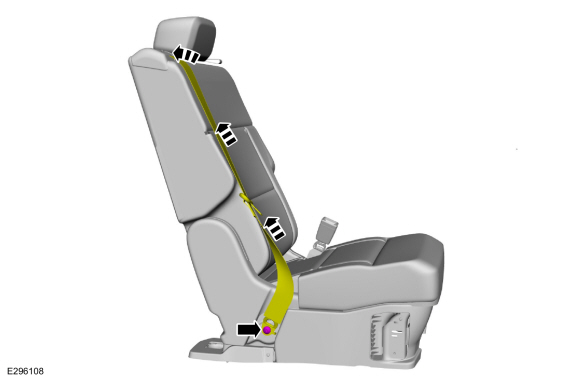

Remove the bolt and position the second row center seatbelt anchor aside.
Torque:
30 lb.ft (40 Nm)
-
Remove the second row center seatbelt buckle.
Refer to: Second Row Center Seatbelt Buckle (501-20A Seatbelt Systems, Removal and Installation).
Base vehicle
-
Remove the second row center seat center valance.
-
Release the retainer.
-
Release the retainer.
-

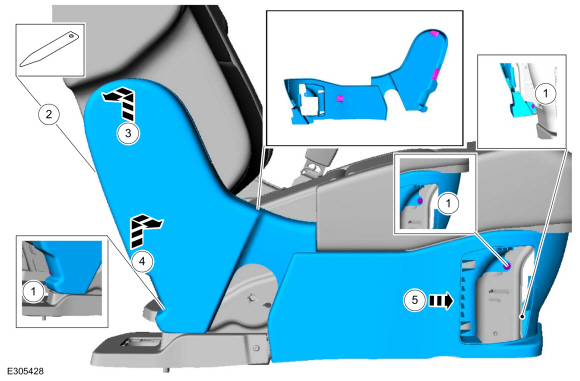

Remove the second row center seat LH side shield.
-
Remove the screws.
-
Detach the retainers
Use the General Equipment: Interior Trim Remover
-
Lift the second row center seat side shield and pull outward.
-
Lift the second row center seat side shield and pull outward.
-
Push the second row center seat side shield forward.
-

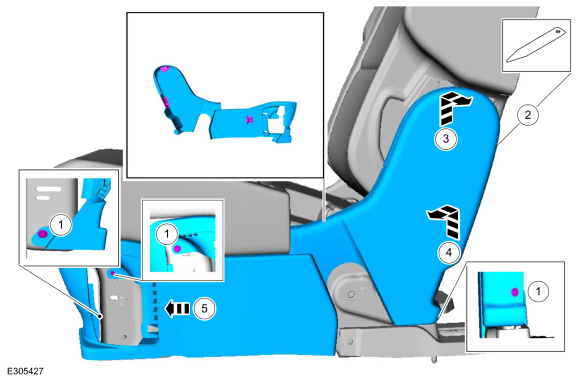

Remove the second row center seat RH side shield.
-
Remove the screws.
-
Detach the retainers
Use the General Equipment: Interior Trim Remover
-
Lift the second row center seat side shield and pull outward.
-
Lift the second row center seat side shield and pull outward.
-
Push the second row center seat side shield forward.
Police vehicle
-

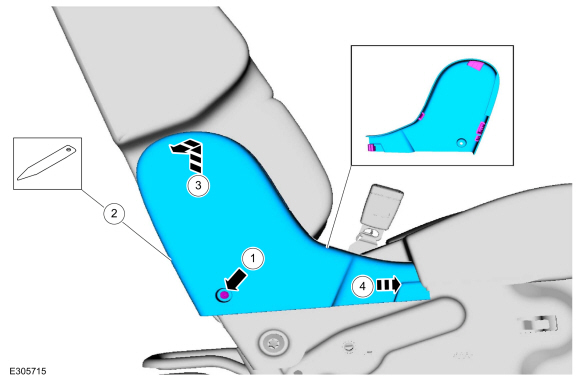

Remove the second row center seat LH side shield.
-
Remove the screw.
-
Detach the retainers.
Use the General Equipment: Interior Trim Remover
-
Lift the second row center seat side shield and pull outward.
-
Push the second row center seat side shield forward.
-

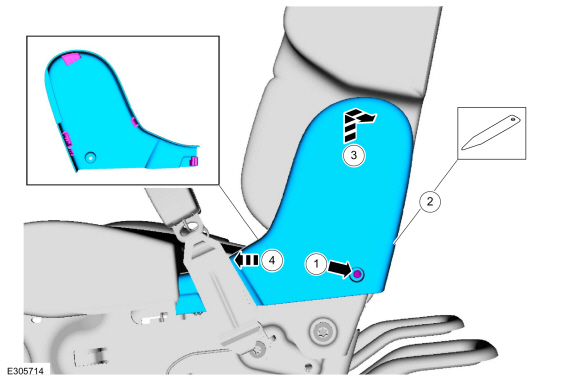

Remove the second row center seat RH side shield.
-
Remove the screw.
-
Detach the retainers.
Use the General Equipment: Interior Trim Remover
-
Lift the second row center seat side shield and pull outward.
-
Push the second row center seat side shield forward.
All vehicles
-
-

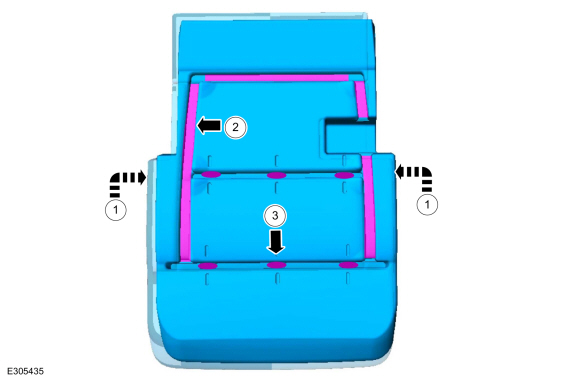

Release the second row center seat cushion cover hook-and-loop retainer.
-
Detach the second row center seat cushion cover J-clips.
-

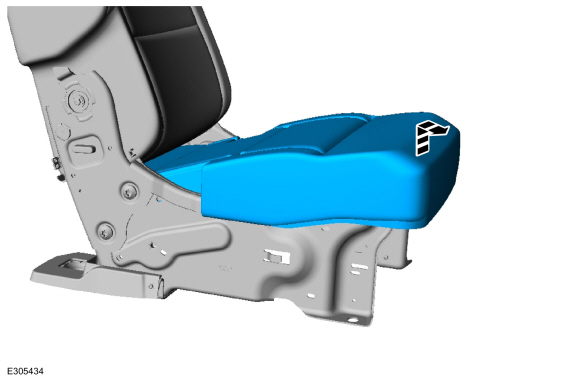

Remove the second row center seat cushion cover and foam.
-
NOTICE:
Use care when separating the seat cushion trim
cover from the hook-and-loop strips or the hook-and-loop strips may be
torn from the seat cushion foam.
NOTICE:
Use care when separating the seat cushion trim
cover from the hook-and arrow or the hook may be torn from the seat
cushion foam.
NOTE:
This step is only necessary when installing a new component.

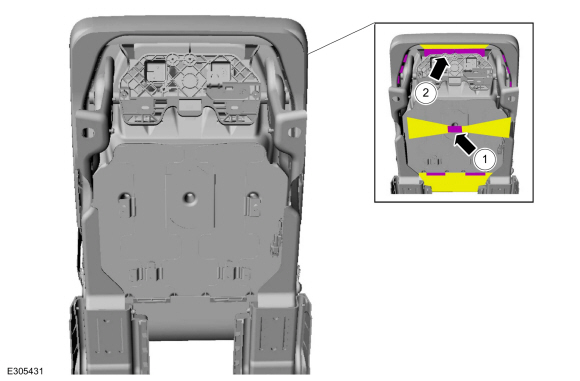

Remove the second row center seat cushion cover.
-
Invert the cover.
-
Release the hook-and-loop strips.
-
Release the hook-and-arrows.
Installation
-
To install, reverse the removal procedure.
