Ford Explorer: Glass, Frames and Mechanisms / Removal and Installation - Rear Door Window Regulator Motor

Ford Explorer 2020-2024 Service Manual / Body and Paint / Body and Paint / Glass, Frames and Mechanisms / Removal and Installation - Rear Door Window Regulator Motor

Removal

NOTE: Left hand (LH) shown, right hand (RH) similar.

NOTE: For rear door window regulator motors that are non-functional it may be necessary to remove the rear door window regulator motor prior to securing the rear door window glass.

Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

NOTICE: Damage to the rear door window glass may occur if not secured.
Secure the rear door window glass with tape.

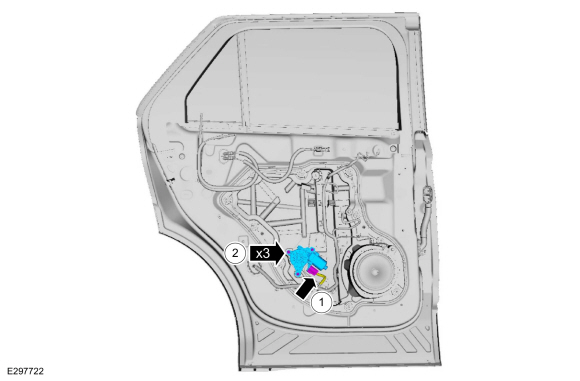

Remove the rear door window regulator motor.
1. Disconnect the rear door window regulator motor electrical connector.
1. Remove the bolts and the rear door window regulator motor.

Installation

To install, reverse the removal procedure.
