Ford Explorer: Body Closures / Removal and Installation - Liftgate Anti-Pinch Switch
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

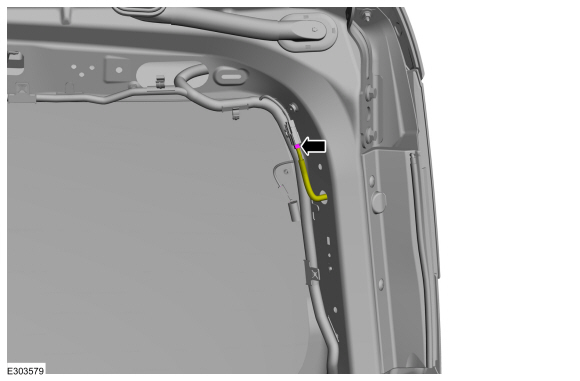

Disconnect the liftgate anti-pinch switch electrical connector.
-

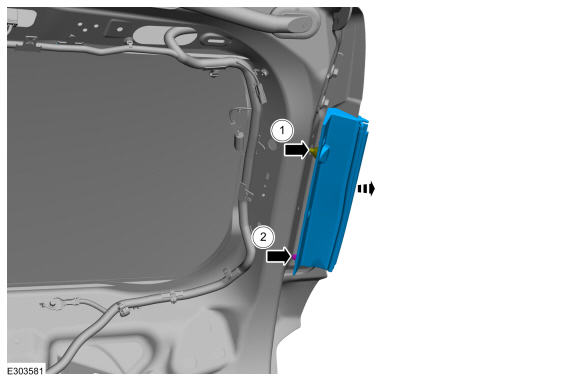

Remove the retainers.
-
-
Remove the rubber grommet and route the electrical connector through the liftgate.
-
Remove the retainer and the liftgate anti-pinch switch.
Installation
-
To install, reverse the removal procedure.
