Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH lamps shown, RH lamps similar.

Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

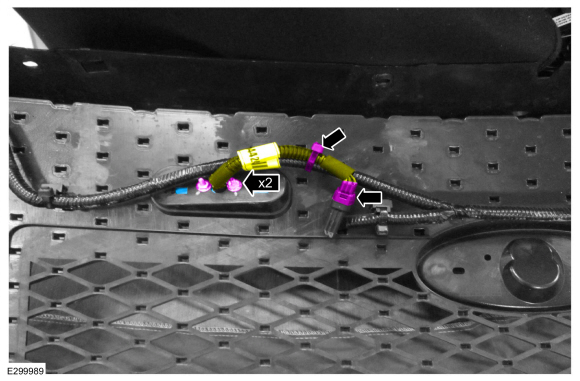

Cut the tie strap, disconnect the electrical connector, remove the nuts and the flashing light emitting diode (LED) lamp.
Torque: 18 lb.in (2 Nm)

Installation

To install, reverse the removal procedure.
