Ford Explorer: Electronic Engine Controls - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Fuel Rail Pressure (FRP) Sensor

Ford Explorer 2020-2024 Service Manual / Powertrain / Engine / Electronic Engine Controls - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Fuel Rail Pressure (FRP) Sensor

Materials

Name Specification
Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound
XG-3-A
ESE-M1C171-A


Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Release the fuel system pressure.
    Refer to: Fuel Rail Pressure (FRP) Sensor (303-14A Electronic Engine Controls - 2.3L EcoBoost (201kW/273PS), Removal and Installation).
  1. Disconnect the battery ground.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

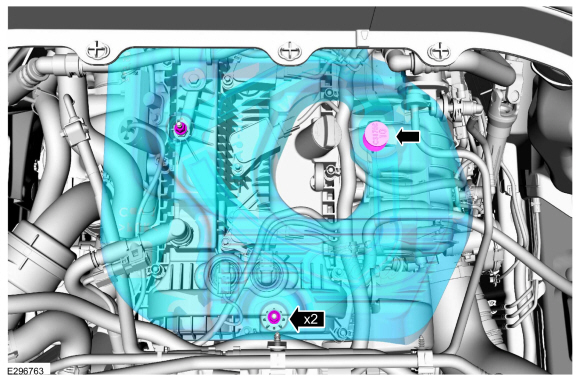

  1. NOTICE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

    1. Remove the engine appearance cover nut.
    1. Place your hand under the engine appearance cover at each grommet location and pull straight up to release each grommet from the studs.
    1. After all of the grommets have been released from the studs, remove the appearance cover from the engine.

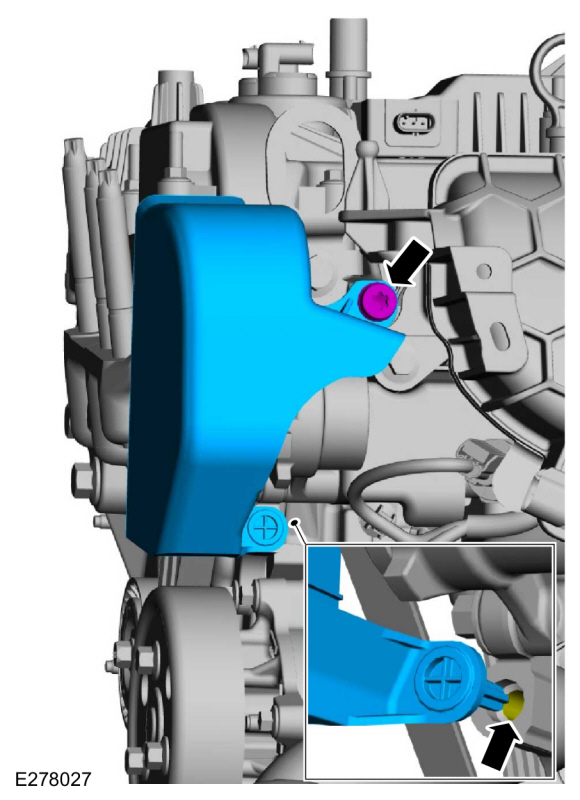

  1. Remove the bolt and shield.
    Torque: 18 lb.ft (25 Nm)

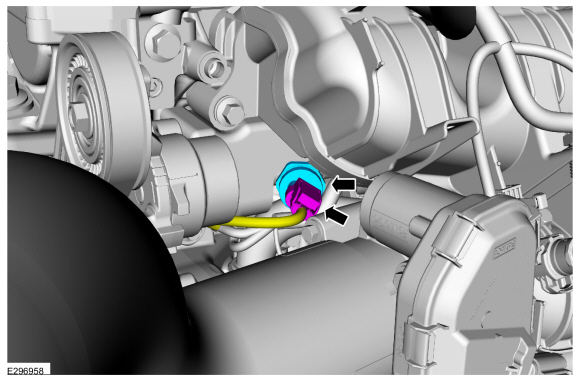

  1. Disconnect the electrical connector and remove the FRP sensor.
    Torque: 24 lb.ft (33 Nm)

Installation

  1. To install, reverse the removal procedure.
    1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.
      Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
    1. Position the engine appearance cover onto engine with the grommets aligned with the studs.
    1. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
    1. Install the engine appearance cover nut.
      Torque: 44 lb.in (5 Nm)
    1. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.
      Torque: 62 lb.in (7 Nm)
