Ford Explorer: Glass, Frames and Mechanisms / Removal and Installation - Front Door Glass Run and Bracket
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
-
Remove the exterior front door handle reinforcement.
Refer to: Exterior Front Door Handle Reinforcement (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
-

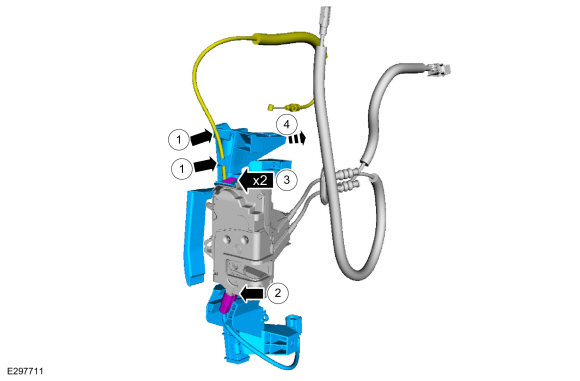

Remove the front door glass run and bracket.
-
Release the exterior front door handle reinforcement handle cable from the routing tabs.
-
Disconnect and remove the front door latch harness electrical connector.
-
Release the front door glass run and bracket retaining tabs.
-
Remove the front door glass run and bracket from the front door latch.
Installation
-
To install, reverse the removal procedure.
-
Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
Remove the driver door window control switch and bezel as an assembly...
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
NOTE:
Removal steps in this procedure may contain installation details.
Remove the front door window glass...
