Ford Explorer: Information Displays / Information Messages

Ford Explorer 2020-2024 Owners Manual / Information Displays / Information Messages

Note: Depending on your vehicle options and instrument cluster type, not all of the messages will display or be available. Certain messages may be abbreviated or shortened depending upon which cluster type you have.

Press the OK button to acknowledge and remove some messages from the information display. Other messages will be removed automatically after a short time.

Certain messages need to be confirmed before you can access the menus.

Active Park

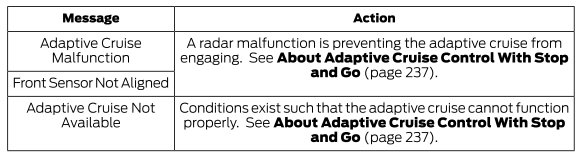

Adaptive Cruise Control

Adaptive Headlamps

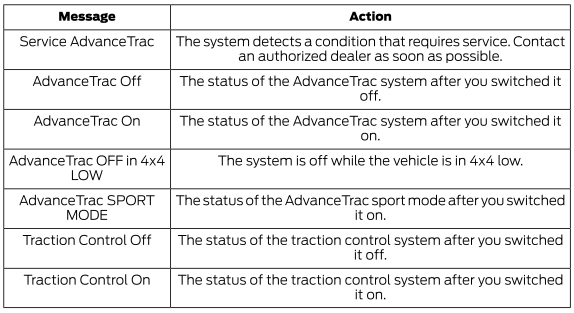

AdvanceTrac™ and Traction Control

Alarm

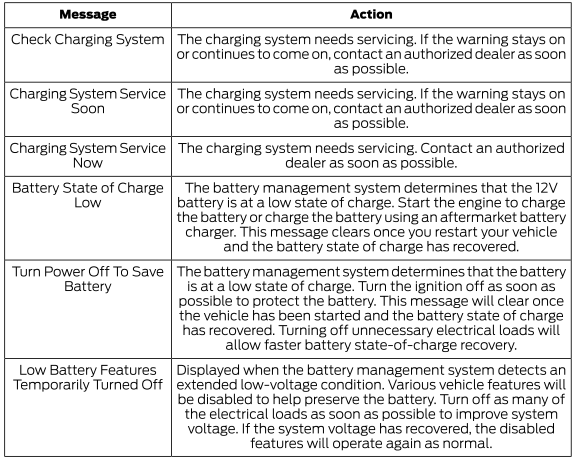

Battery and Charging System

Blind Spot Information and Cross Traffic Alert System

Doors and Locks

Driver Alert

Fuel

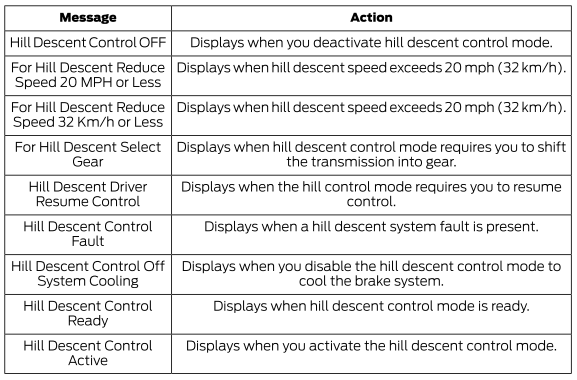

Hill Descent Control

Hill Start Assist

Keys and Intelligent Access

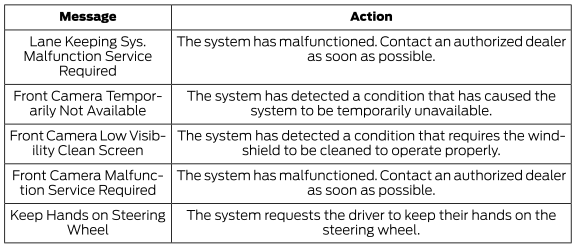

Lane Keeping System

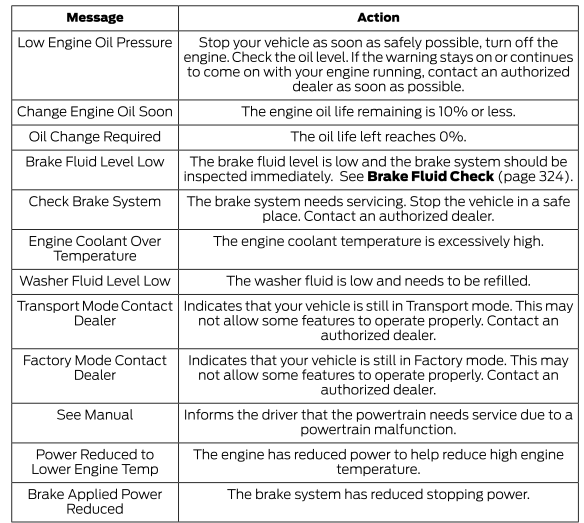

Maintenance

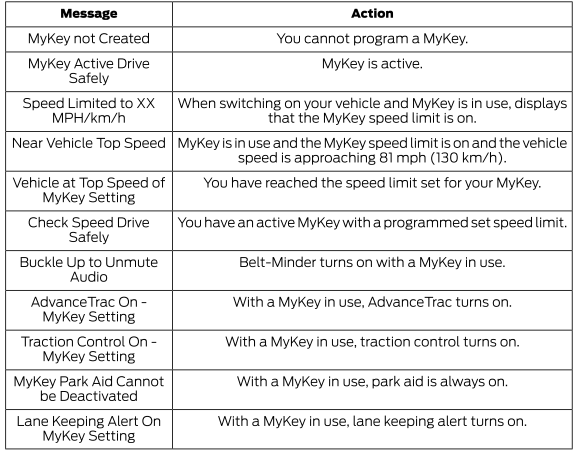

MyKey

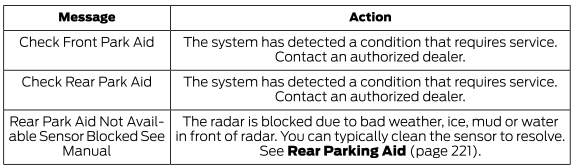

Park Aid

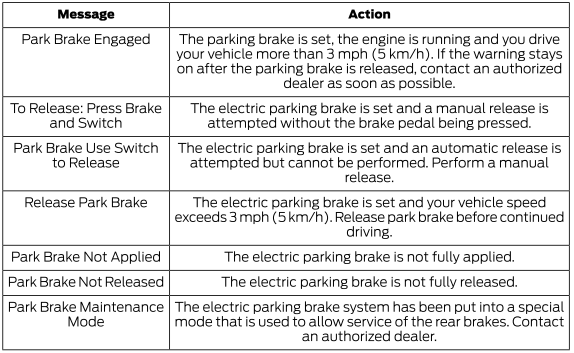

Park Brake

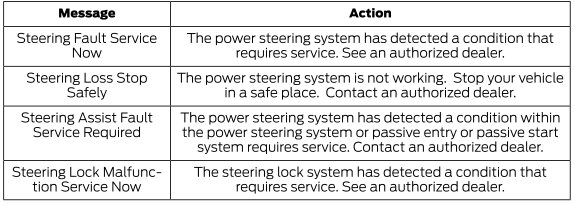

Power Steering

Pre-Collision Assist

Remote Start

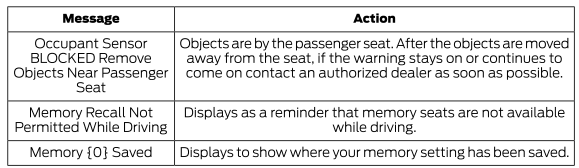

Seats

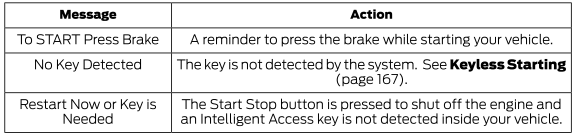

Starting System

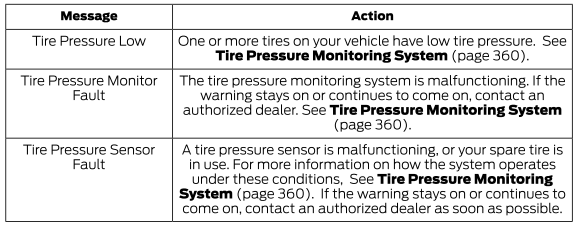

Tire Pressure Monitoring System

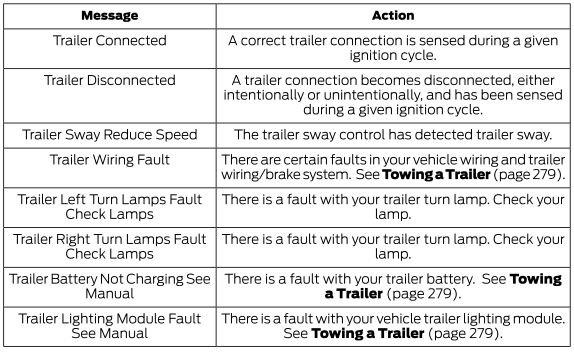

Trailer

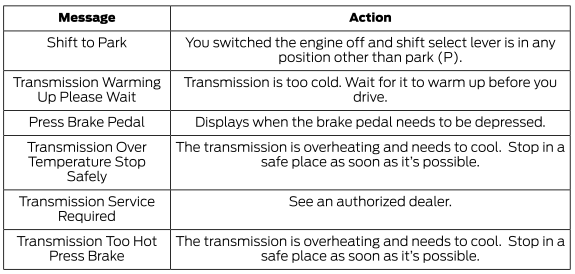

Transmission

4WD

Personalized Settings

Select one of these options to display on your main screen. Note: Some options may appear slightly different or not at all if the items are optional...

Climate Control
